Azure AD SSO Configuration

Overview

Single sign-on (SSO) allows you to give your team members one account for all of the systems your business uses. If you have an Etlworks Enterprise or on-premise account and have SSO set up for your business, you can require users to log in to Etlworks using their SSO credentials.

Single Sign-On through Microsoft Azure Active Directory.

Step 1. Request SAML configuration from Etlworks support for your Azure AD App.

Step 2. Log in to Azure AD Portal

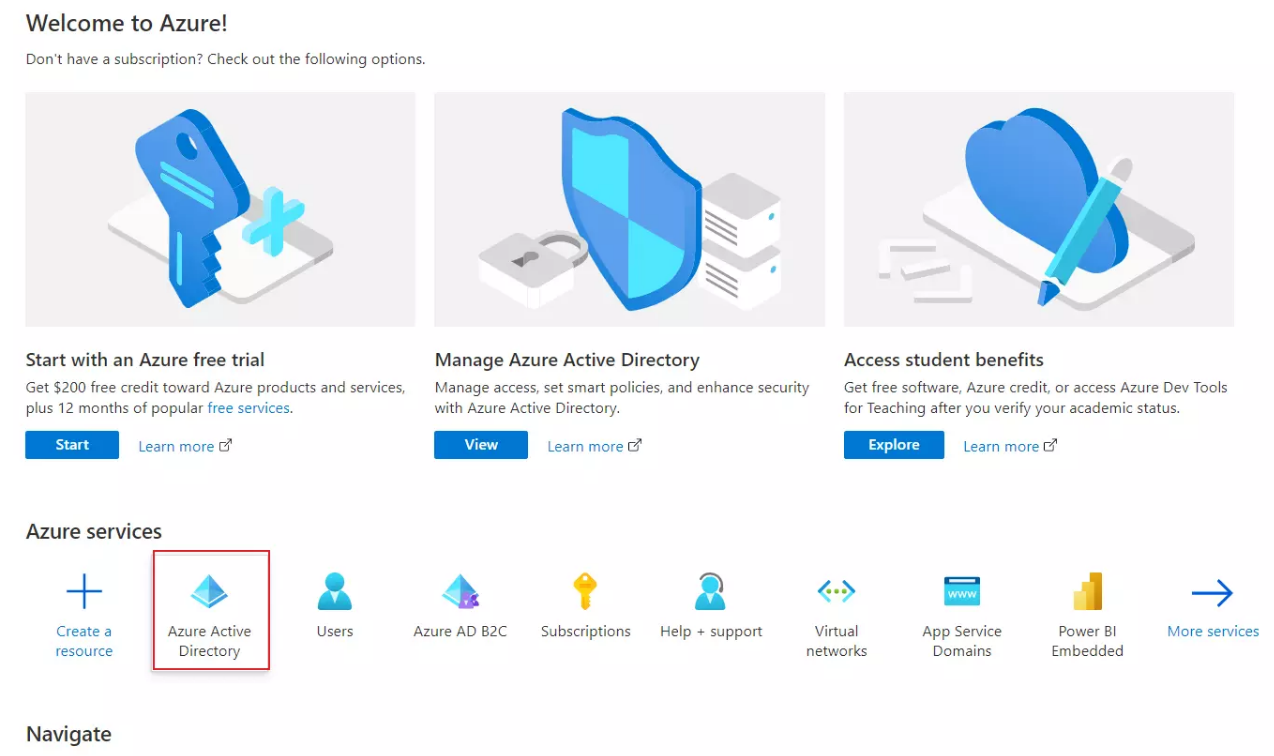

Step 3. Select Azure Active Directory.

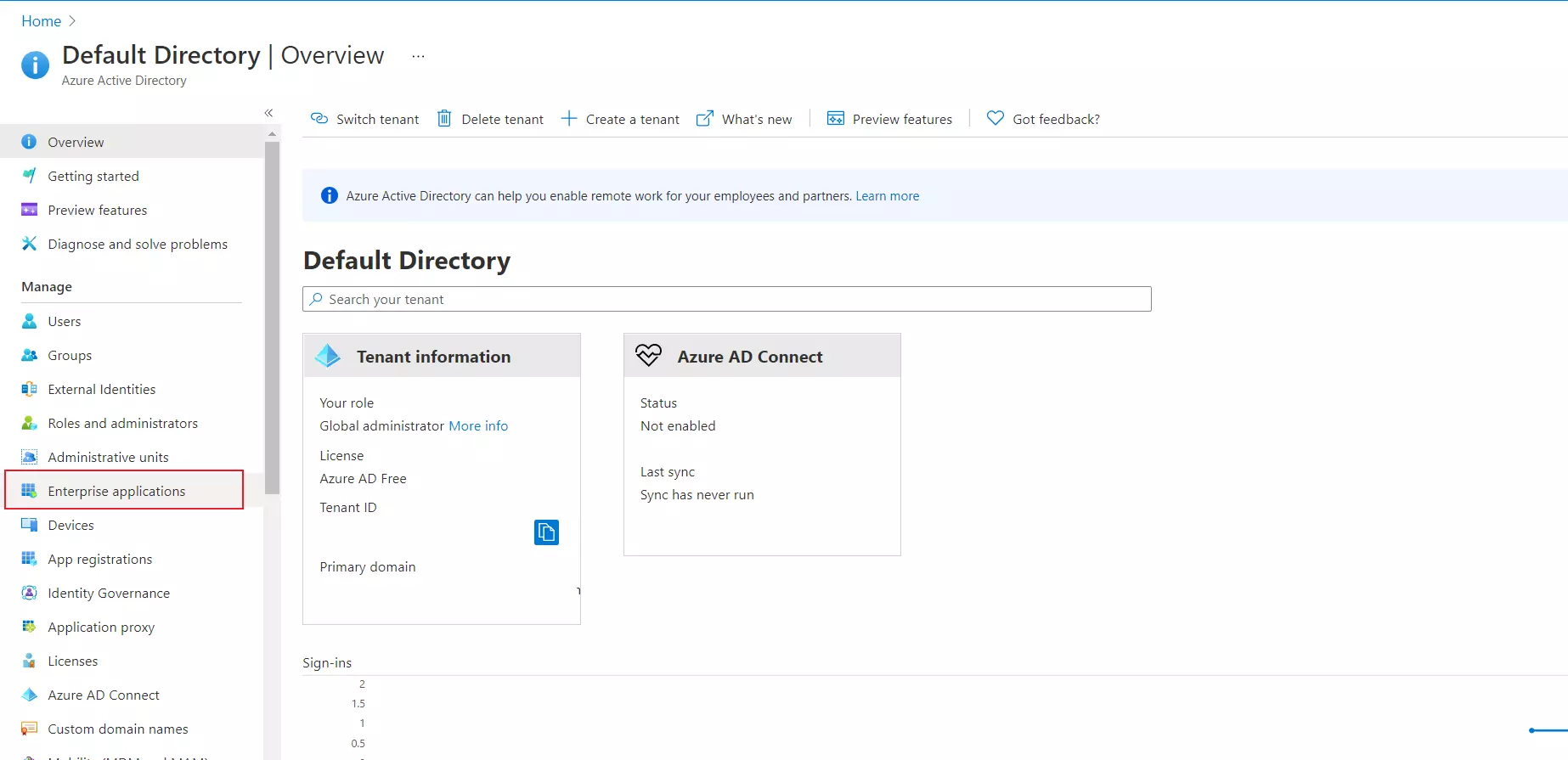

Step 4. Select Enterprise Application.

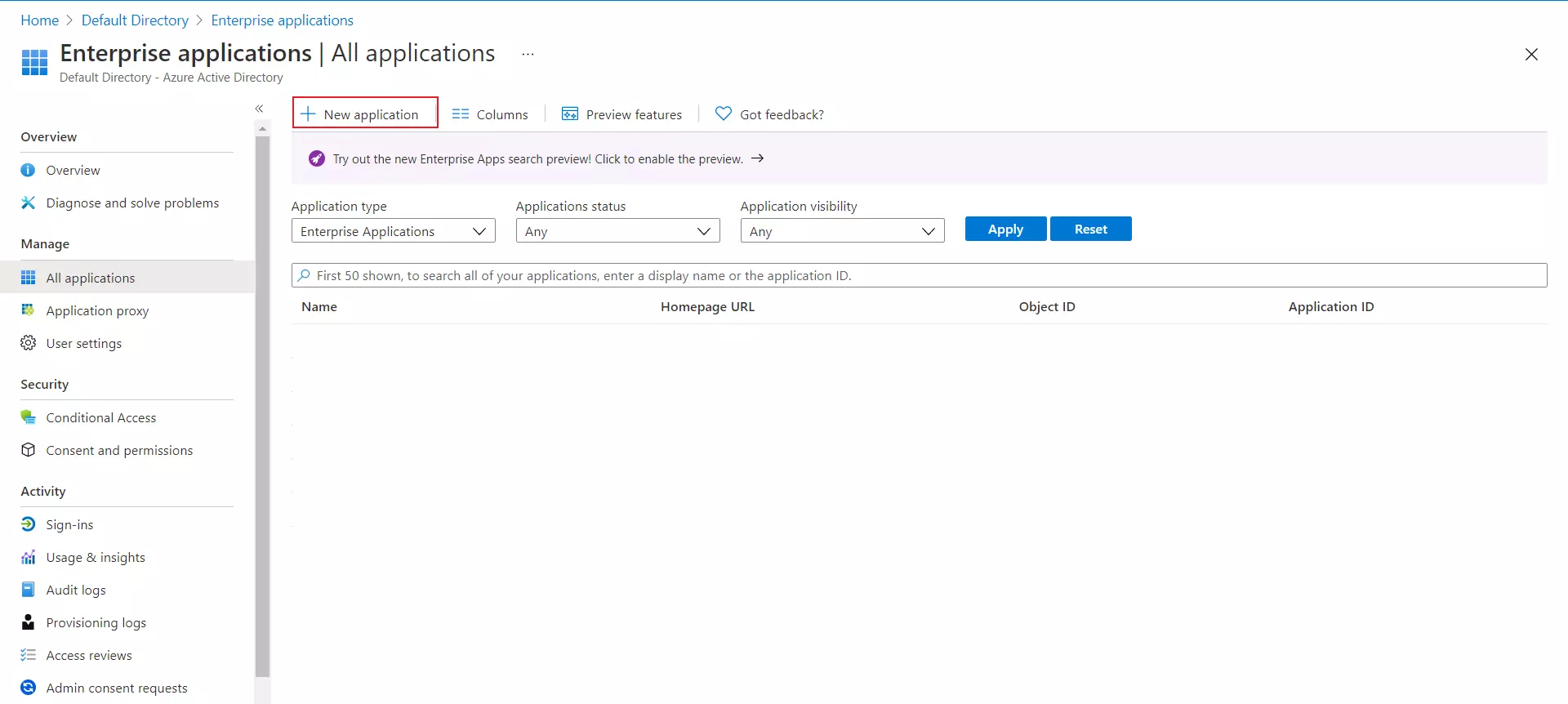

Step 5. Click on New Application.

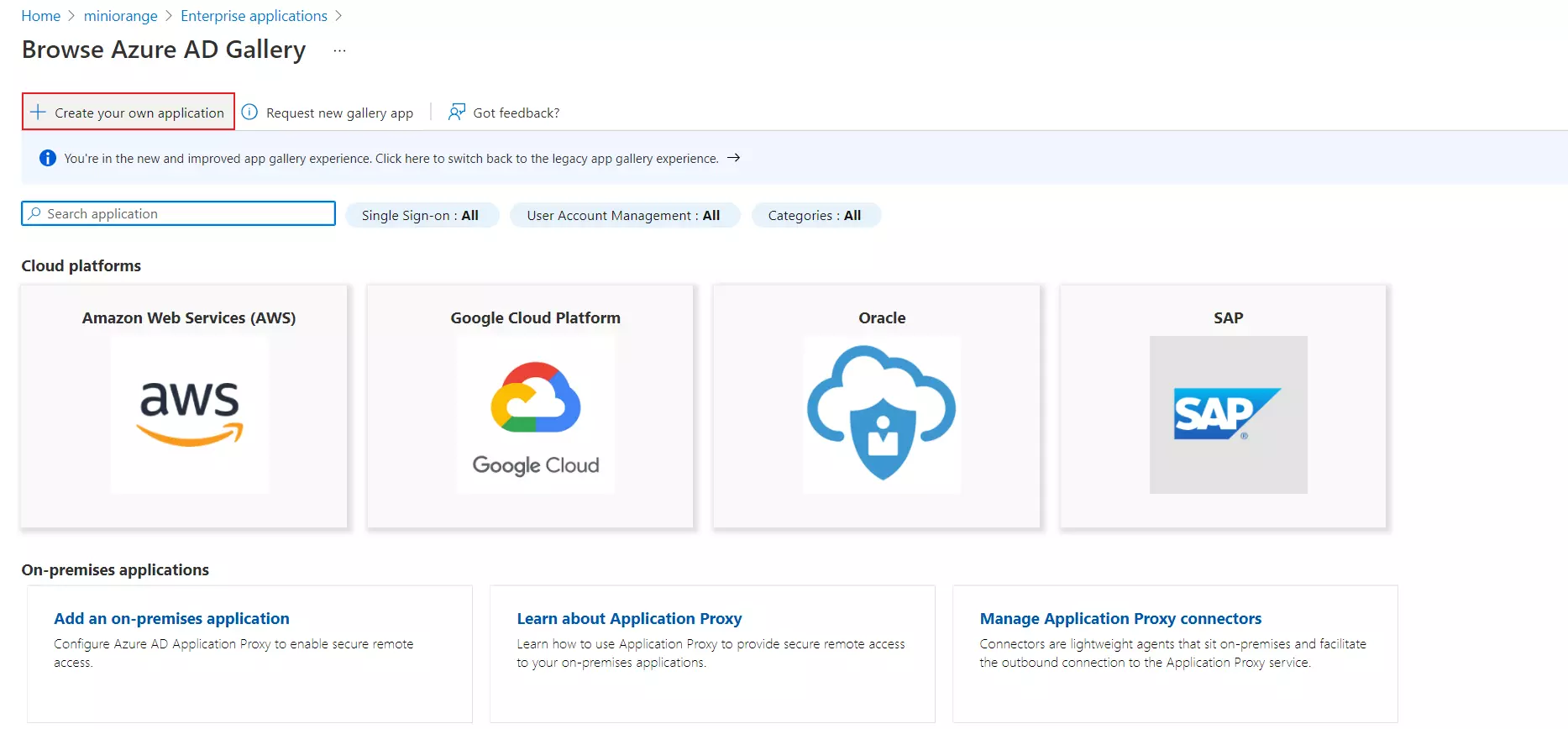

Step 6. Click on Create your own Application.

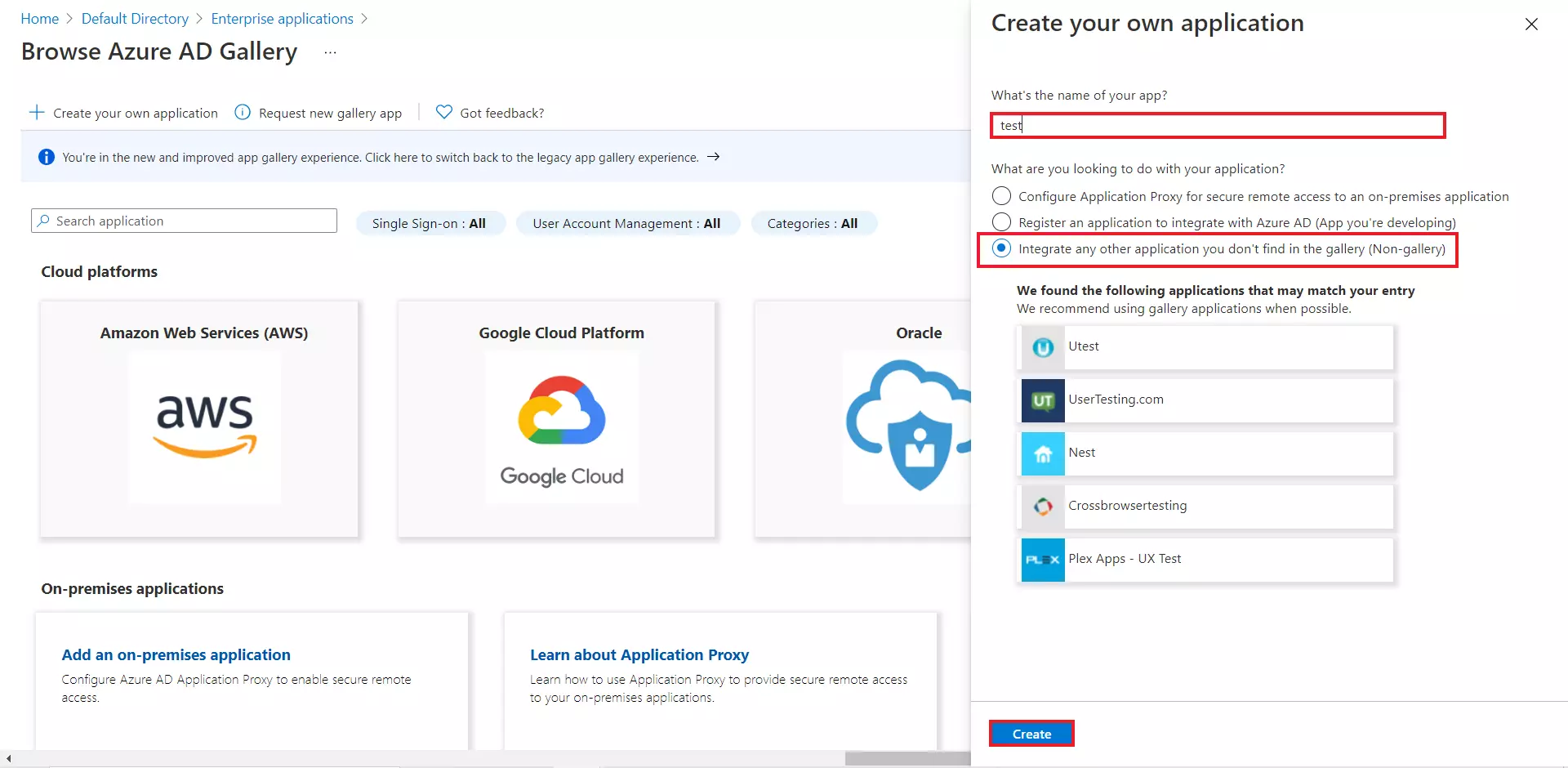

Step 7. Enter the name for your app, then select Non-gallery application section and click on Create button.

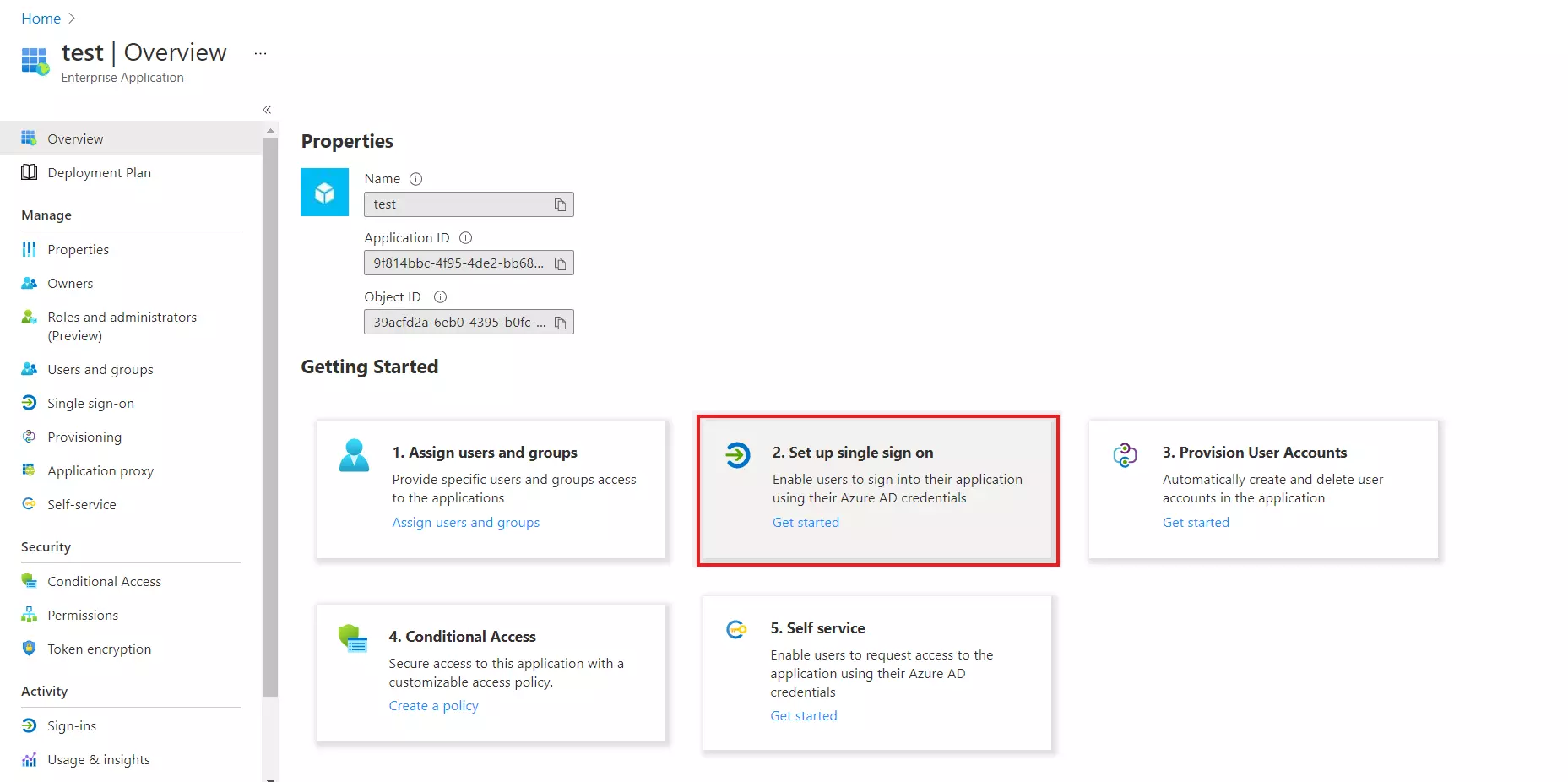

Step 8. Click on Setup Single sign-on.

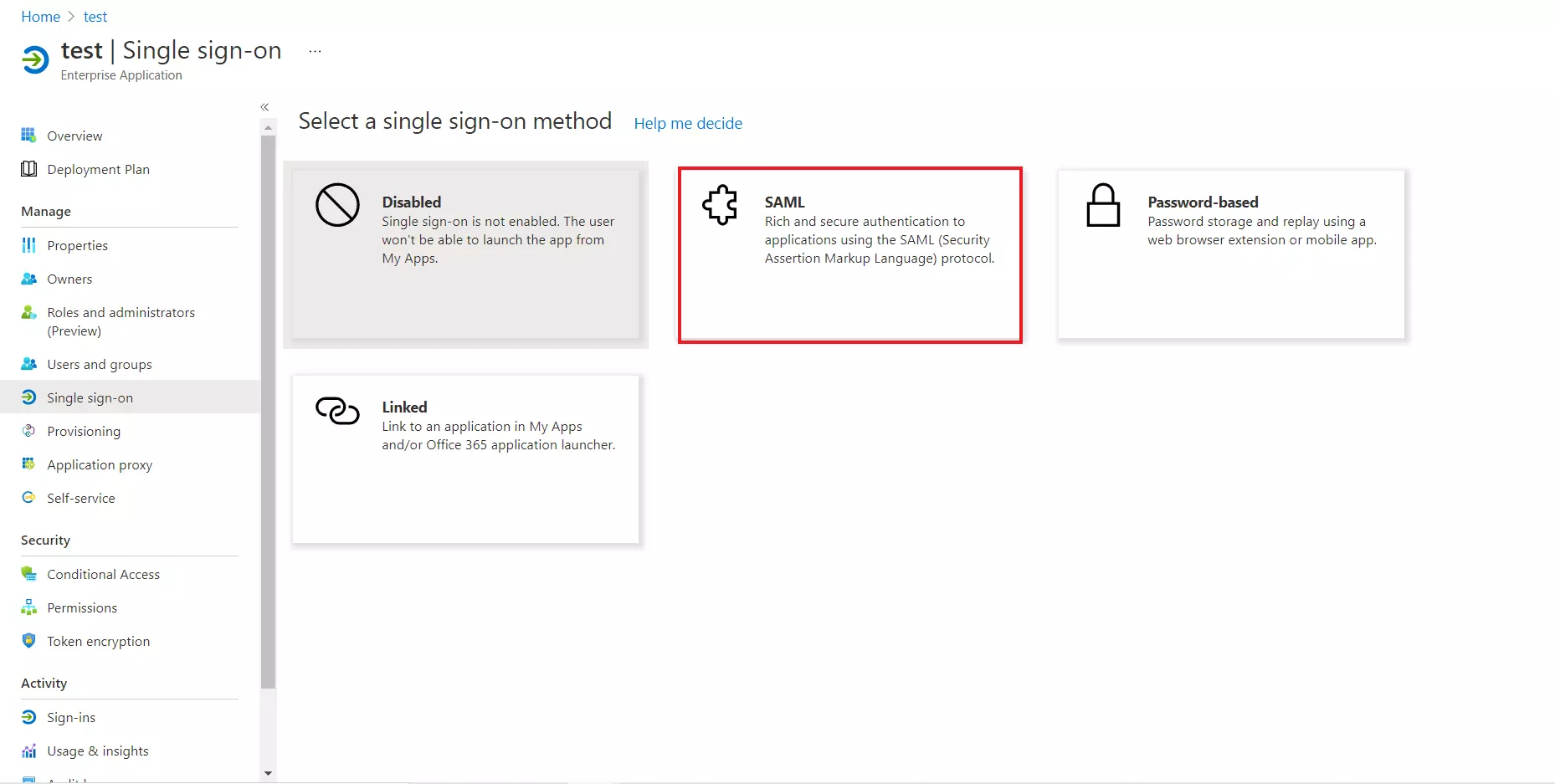

Step 9. Select the SAML  tab.

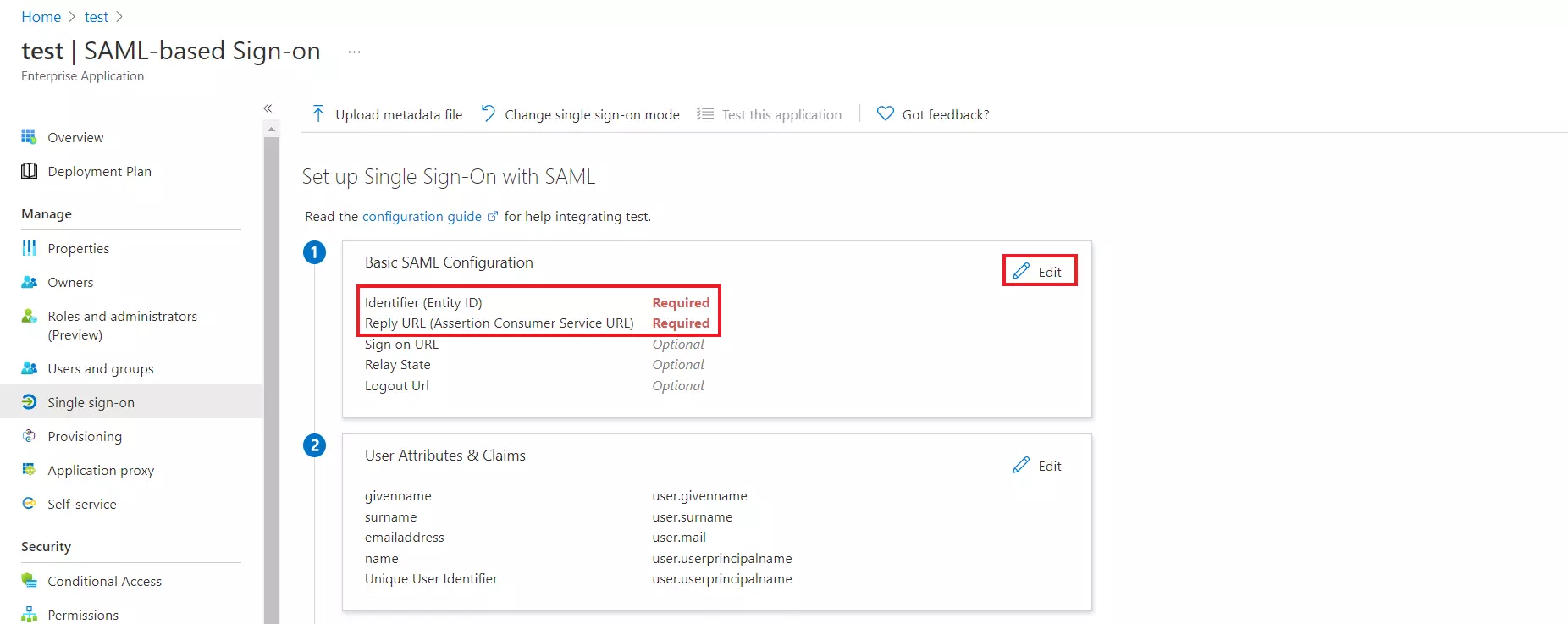

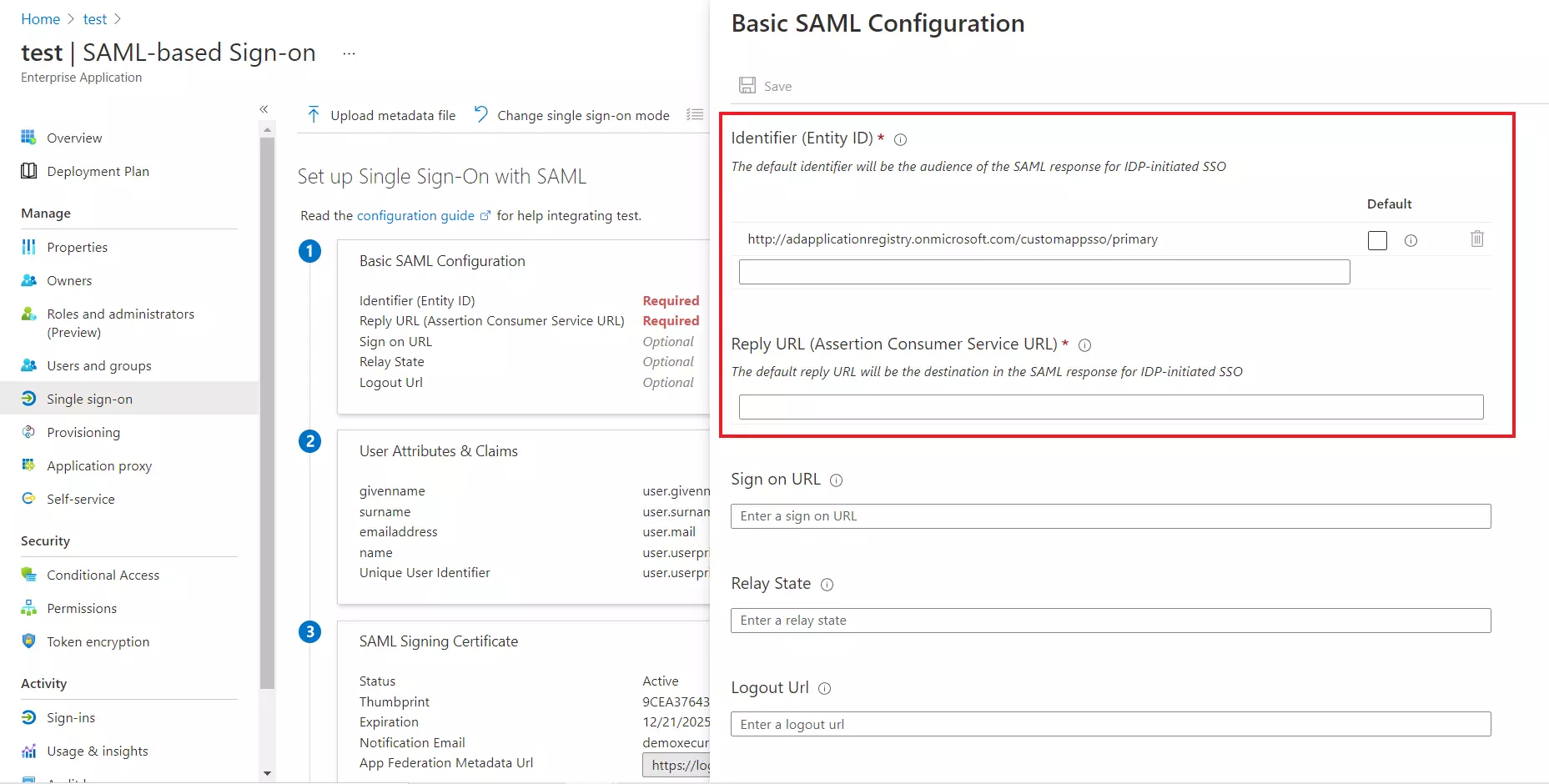

Step 10. After clicking on Edit, enter the SP Entity ID for Identifier and the ACS URL for Reply URL from step 1.

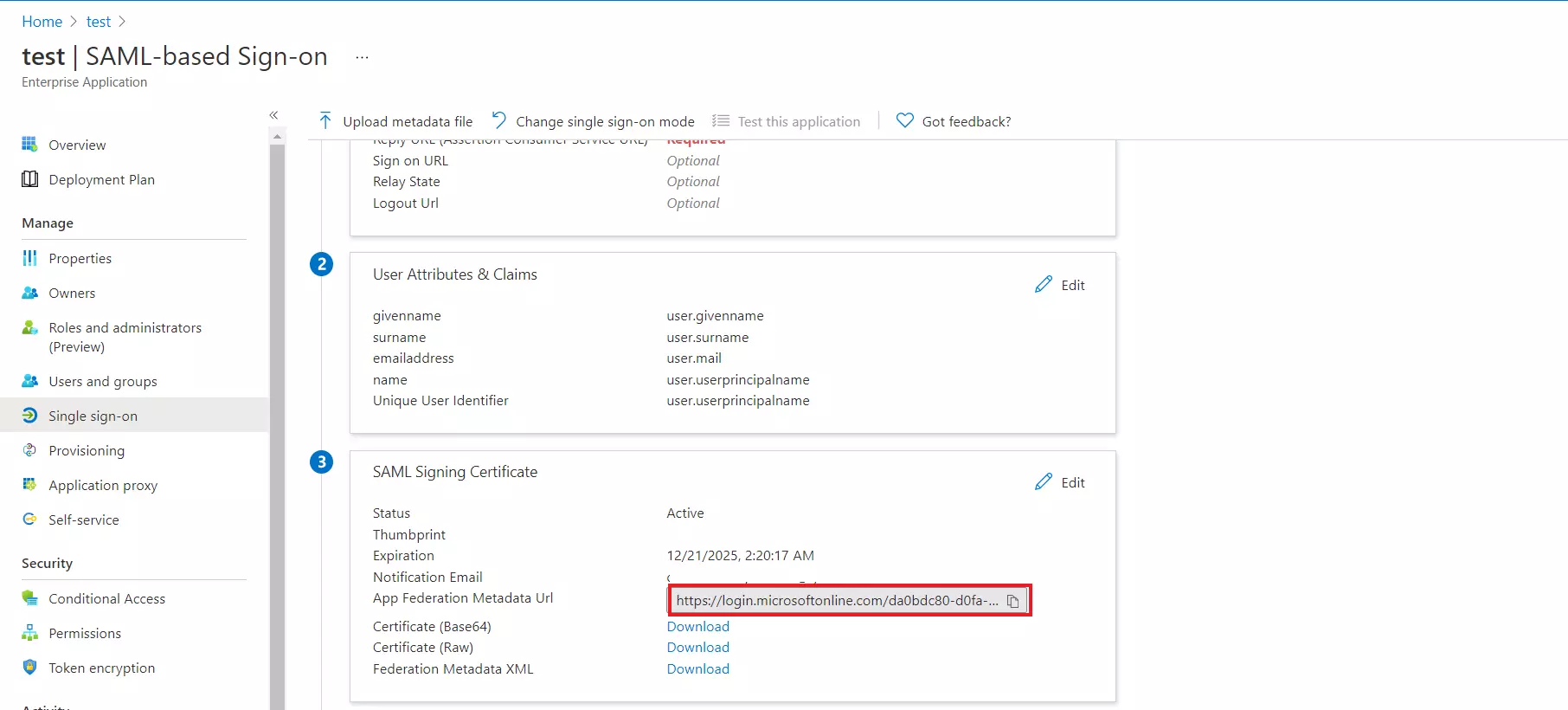

Step 11. Copy the App Federation Metadata Url and open it in a separate tab of your browser. Save opened XML file and send it to the Etlworks support in order to establish your Azure AD as an Identity Provider.

Step 12. Assign users and groups to your SAML application

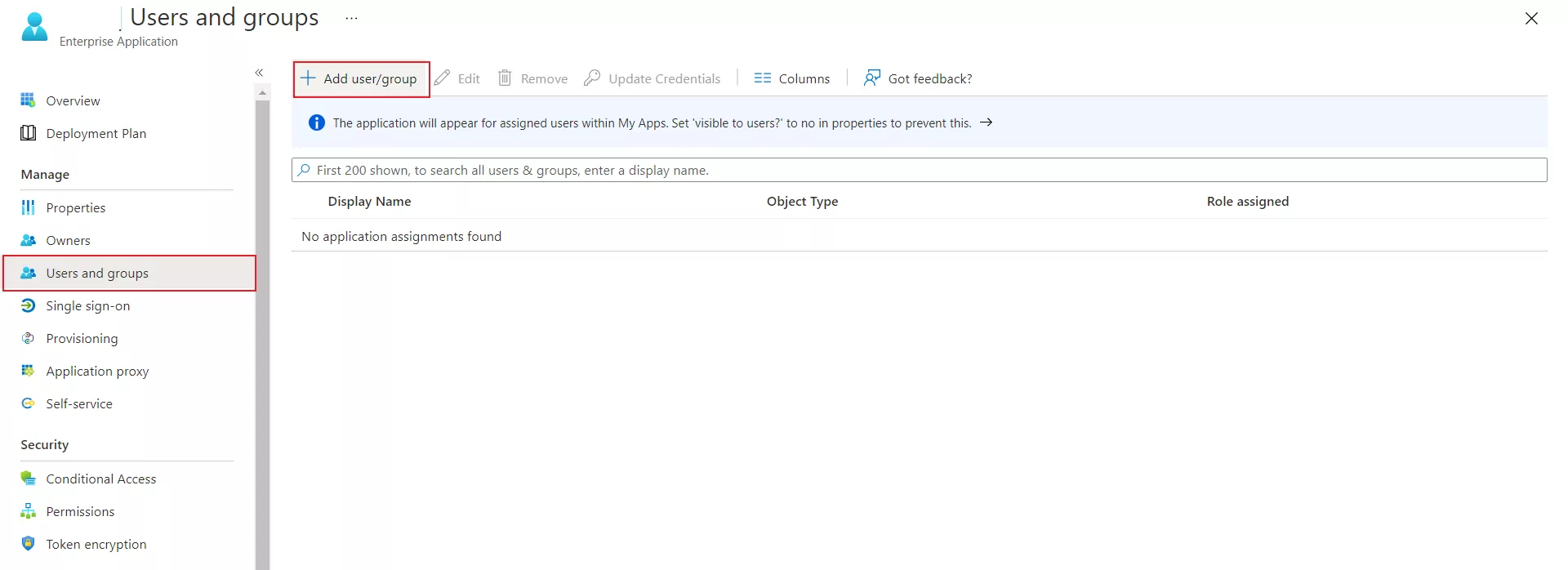

1. 1. Navigate to Users and groups tab and click on Add user/group.
2. Click on Users to assign the required user and then click on select.

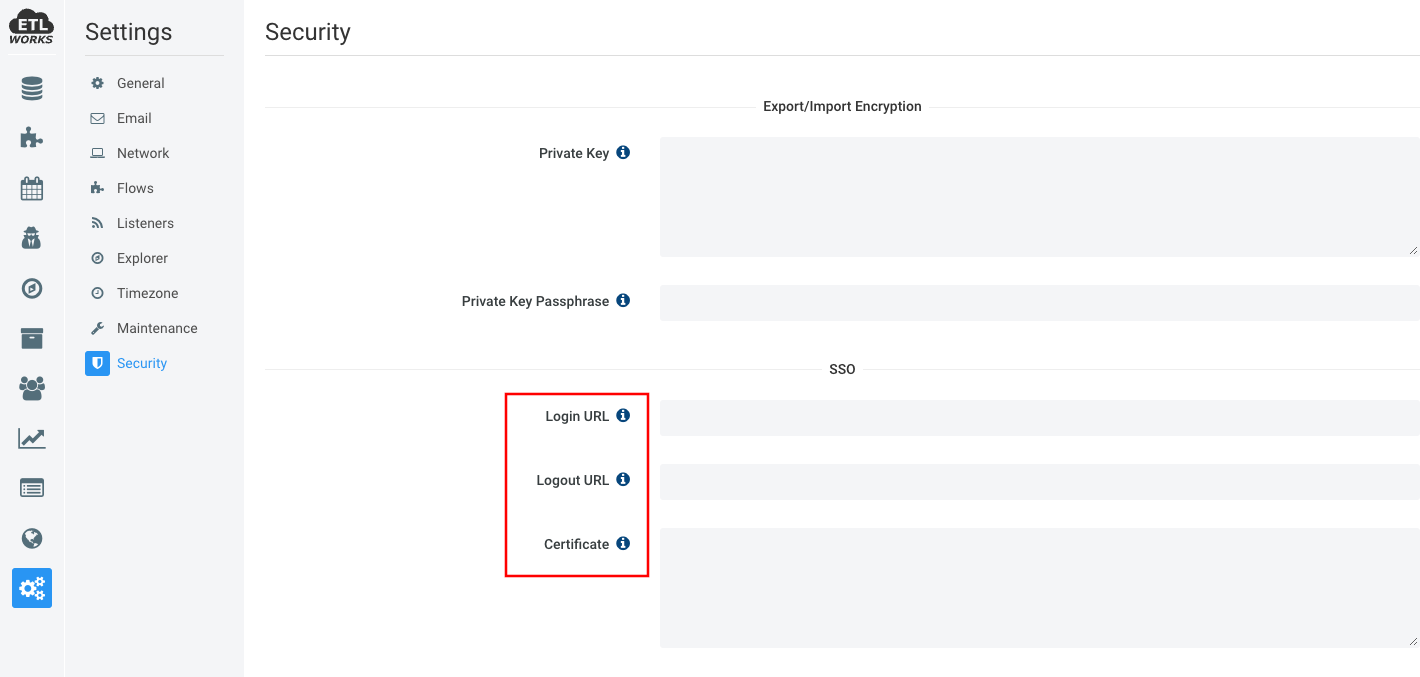

Step 13. After Etlworks support established your Azure AD App as an Identity Provider in the SSO provider solution you will receive SSO Login and Logout URLs and Certificate, that you need to configure under Settings -> Security.
