Overview

Vertica is an analytical database and query engine that leverages the power of cloud-based technologies but can be deployed on-premises as well. Etlworks includes several pre-built bulk-load Flows optimized for Vertica.

Flows optimized for Vertica

Flow type		When to use
Any to Vertica: Database to Vertica File to Vertica Queue to Vertica Web service to Vertica Well-known API to Vertica		When you need to extract data from any source, transform it and load it into Vertica.
Bulk load files into Vertica	You are here	When you need to bulk-load files that already exist in local or cloud storage without applying any transformations. The flow automatically generates the COPY command and MERGEs data into the destination.
Stream CDC events into Vertica		When you need to stream updates from the database which supports Change Data Capture (CDC) into Vertica in real-time.
Stream messages from a queue into Vertica		When you need to stream messages from the message queue which supports streaming into Vertica in real time.

When to use this Flow type

Use this Flow type when:

1. You want to load CSV files that already exist in the cloud or local storage into the Vertica without applying any transformations or transferring files over the network.
2. When you want to load CSV files created by the CDC Flow.

This Flow does not transform the data. Read how to ETL data into Vertica using bulk load.

Prerequisites

Vertica database is up and running and accessible from the Etlworks instance. Read how to work with on-premise data in Etlworks.

How it works

1. The Flow reads the names of all files matching the wildcard in the specific location in the cloud or file storage. It can traverse the subfolders as well.
2. The Flow calculates the destination table names based on the source file names.
3. The Flow creates multiple threads, one per destination table but not more than the configurable threshold.
4. The Flow generates and executes the COPY command to load files into the staging table.
5. The Flow mergers data in the staging table with data in the actual table.

Features

The Flow supports INSERT, MERGE (UPSERT), and CDC MERGE. With CDC MERGE, the Flow updates the actual destination table by applying INSERT/UPDATE/DELETE events in the same order as they originated in the source database and recorded in CSV files. It performs it in the most efficient way possible.

Other Features	Description
Monitor source schema changes	The Flow is able to CREATE and ALTER destination tables to keep up with schema changes in the source.
Delete loaded source files	The Flow can be configured to delete successfully loaded source files.
Load data in parallel	The Flow is able to load data into multiple destination tables in parallel.
Process files in subfolders	The Flow is able to process files in multiple nested subfolders.
Create all or selected columns as VARCHAR(65000)	The Flow is able to create all or selected columns as VARCHAR(65000), which mitigates issues related to the source schema drift.

Process

Step 1. Create a new storage Connection

This Connection will be used as a source to access files stored in the local or cloud storage.

The Connection can be one of the following:

• Server storage
• Amazon S3
• Google Cloud Storage
• Azure Storage

Step 2. Create a new Vertica connection

This Connection will be used as a destination.

It is recommended to enable the auto-commit for the destination connection.

Step 3. Create a new CSV Format

Read how to create CSV format. Keep the default values for all parameters.

Step 4. Create a new Flow

This Flow will be used to load files in the file or cloud storage into the destination database.

In Flows click [+], type in vertica, and select the Bulk load CSV files into Vertica.

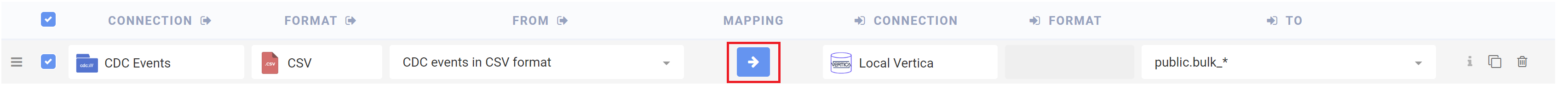

Step 5. Configure load transformation

Select or enter the following attributes of the transformation (left to right):

1. File or Cloud storage Connection created in step 1.
2. CSV Format created in step 3.
3. A wildcard filename that matches the filenames in the cloud storage. Use .csv extension for uncompressed files and .gz for compressed.
4. Destination database Connection created in step 2.
5. The fully qualified wildcard destination table name, for example public.*.

Step 6. Set required and optional parameters

Click MAPPING.

Select the Parameters tab.

Select or enter the following optional and required parameters:

Source Files and Destination Tables

• Include files in subfolders: if this option is enabled, the Flow will load all files that match the wildcard filename (set in FROM) in all subfolders under the main bucket or blob.
• Exclude and Exclude files: the optional comma-separated list of files to exclude and/or include. You can use wildcard file names. These options used together with the wildcard filename set in FROM:
  1. The Flow populates the list of files matching a wildcard filename in FROM.
  2. The Flow excludes files based on the list of exclusions set in Exclude files.
  3. The Flow includes files based on the list of inclusion set in Include files.
• Calculate destination table name: this is a required parameter used to calculate (using JavaScript) the destination table name based on the source file name. The original file name, without the extension, is stored in the variable name and the actual table name must be assigned to the variable value. For example, let's assume that the source file name is db_schema-table_cdc_stream_uuid.csv. The JavaScript code to calculate the destination table name will be value = name.substring(name.indexOf('-') + 1, name.indexOf('_cdc_stream'));. IMPORTANT: the flow will automatically recognize and transform filenames matching the following template: *_cdc_stream_*.*. If filenames are matching this template there is no need to provide a transformation script.
• Maximum Number of Files to Process: the optional parameter that controls how many files will be loaded in one batch (one run of the Flow). If you expect that at any point in time there will be hundreds of thousands or millions (10^6 - 10^7) of files in the source folder(s), it is recommended to limit the number of files to process to more manageable: hundreds to thousands (10^3-10^5).
• Maximum Number of Parallel Loads: if the value of this optional parameter is greater than 1, the Flow will create multiple threads to load data in parallel –– one thread per table but not more than the threshold set in this parameter.
• Parallel: enable this flag if you have more than one source-to-destination transformation that you want to execute in parallel.
• Create new destination connection for each table: if this parameter is enabled the new destination connection will be created to load data into each destination table. The connections will be closed when the flow will finish loading data into all tables.

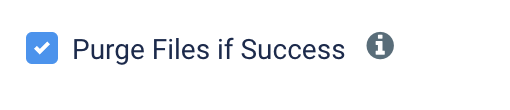

• Purge Files if Success: if this parameter is enabled (default) the source files will be automatically deleted after they have been successfully loaded.

Debug

• Log each executed SQL statement: enable this flag if you want to log each automatically generated and executed SQL statement, including before/after Load SQL.

Error recovery

• Continue loading data into other tables if Error: if this parameter is enabled (it is disabled by default) and there is an error when loading data into some table the flow will continue loading data into other tables. If configured the notification will be sent to the webhook.

Load and Merge

• Bulk Load SQL: the Bulk Load SQL is used to load files in the cloud or file storage into the staging tables in Vertica database. This is a required parameter.

  By default, we assume that the flow bulk-loads from the local (server) storage usingCOPY FROM LOCALcommand.

  COPY {TABLE} FROM LOCAL '{FULL_FILE_NAME}'
  PARSER fcsvparser(header='true') ABORT ON ERROR;

  You can modify the SQL statement that will be used to bulk-load data into the destination table. The following {tokens}can be used as a part of the SQL statement:

  • {TABLE}: the table to load data into.
  • {TEMP_TABLE}: the staging table name used for MERGE.
  • {FILE_TO_LOAD}: the file name to load without path and extension.
  • PATH: the path of the file to load without file name, for example{app.data}/test/.
  • EXT: the file extension of the file to load, without., for example,csv.

  Read about VerticaCOPYcommand options.

• Action: can be INSERT which inserts records from the file(s) into the destination table, MERGE which merges records from the file with the records in the destination table, and CDC MERGE which loads CDC events (INSERT/UPDATE/DELETE) in the same order as they were originated in the source database. MERGE and CDC MERGE require configuring the Lookup Fields or/and enabling the Predict Lookup Fields.
• How to MERGE: defines how flow merges data in the temp or staging table with the data in the actual table. The default is DELETE/INSERT: DELETE all records in the actual table that also exist in the temp table, then INSERT all records from the temp table into the actual table. If this parameter is set to MERGE with separate DELETE the flow will execute native Vertica MERGE SQLfor INSERTs and UPDATEs and separately DELETE for DELETEs.
• User-defined MERGE SQL: by default, the MERGE SQL is generated automatically. Use this parameter to override automatically generated SQL. The following {tokens} are available:
  • {TABLE} - the destination table.
  • {TEMP_TABLE} - the staging or temp table.
  • {FIELDS} - the fields to INSERT/UPDATE in the destination table.
  • {INSERT_FIELDS} - the values of the fields to INSERT into the destination table.
  • {UPDATE_FIELDS} - the fields and values to UPDATE in the format field=value,field=value.
  • {UPDATE_CONDITIONS} - the condition to match records in the actual destination and temp/staging tables.
• Lookup Fields: the comma-separated list of fields that uniquely identify the record in the destination table.
• Predict Lookup Fields: If this option is enabled and Lookup Fields is empty, the system will try to predict the columns that uniquely identify the record in the destination table.
• Extra Lookup Fields: additional columns which will be added to the Lookup Fields automatically set when the parameter Predict Lookup Fields is enabled.

ELT

• Set variables for Before and After SQL: code in JavaScript to set the variables that can be referenced as {varname} in the Before and/or After SQL. To set the variable add it as a key-value pair to the script variable 'vars'.
  • Example: vars.put('schema', 'abc');
  • Example of the SQL: insert into test (schema_name) values ('{schema}')
• Before load SQL: this SQL will be executed on the destination Connection before loading data.
• Ignore errors when executing Before load SQL: if this parameter is enabled, and there is an error when Before load SQL is executed, the error will be ignored.
• Before Load SQL is a script: if this parameter is enabled, Before Load SQL will be executed as a SQL script.
• After load SQL: this SQL will be executed on the destination Connection after loading data into the destination table.
• Ignore errors when executing After load SQL: if this parameter is enabled and there is an error when After load SQL is executed, the error will be ignored.
• After Load SQL is a script: if this parameter is enabled, After Load SQL will be executed as a SQL script.

Handling source schema changes

• Alter target table if the source has columns that the target table doesn't have: if this parameter is enabled (it is disabled by default), and the source has different fields than the destination table, the system will add missing fields to the destination table.
• Create all actual tables with only TEXT columns: if this parameter is enabled (it is disabled by default) the flow will create all destination tables with only VARCHAR(65000) columns. Enable this option to make the load more resilient to the source schema drift. By default, the flow creates the actual table using the first file as a pattern. It then alters the actual table by adding new columns but it never modifies the data types of the existing columns which could cause issues if there are multiple source files to load into the same destination table and some of these files have columns with different data types (compare to each other).
• Actual tables with all TEXT columns: a comma-separated list of regular expressions matching the table names for which the flow should create all columns as VARCHAR(65000).

Here are the rules for regexes:

• • Regexes are case insensitive.
  • If regex includes comma (,) it must be escaped (/,).
  • Java regex syntax must be used.
  • If the destination table name is configured using fully qualified (DB.SCHEMA.TABLE) or partially qualified (SCHEMA.TABLE) notation the regex should reflect it. Example (include tables country and city): text.* -> .*country,.*city.

• TEXT columns: a comma-separated list of regular expressions matching the column names which should be created as VARCHAR(65000).

Here are the rules for 3 parameters above:

• • • If Create all actual tables with only TEXT columns is enabled all columns in all new tables and new columns in the existing tables will be created as VARCHAR(65000).
    • If the table name matches the regex in Actual tables with all TEXT columns and TEXT columnsis empty all columns in that table will be created as VARCHAR(65000).
    • If TEXT columnsis not empty and the column name in any table matches any regex configured in this field the column will be created as VARCHAR(65000).

• Create temp tables with only TEXT columns: if this parameter is enabled (it is disabled by default) the flow will create temporary tables with only TEXT columns. Enable this option to make the load more resilient to the source schema drift. By default, the flow creates the temp table using the first file as a pattern. It then alters the temp table by adding new columns but it never modifies the data types of the existing columns which could cause issues if there are multiple source files to load into the same destination table and some of these files have columns with different data types (compare to each other). This option is automatically enabled if Create all actual tables with only TEXT columnsis enabled or if the table name matches the regex configured in Actual tables with all TEXT columns.

Step 7. Optionally, add a mapping.

The mapping can be used to:

1. Rename the column.
2. Exclude the column.
3. Change the column data type for the tables created by the flow.

Configure mapping

Select transformation and click MAPPING.

Add mapping for column CURRENT_DATE.

The renaming or excluding the column in mapping will work for all tables that have this column. If the table does not have the column the mapping will be ignored.

Step 8. Optionally, add more source-to-destination transformations

Click [+] and repeat steps 5 to 6 for more locations and/or file name templates.
