Extract, transform, and load data in Vertica

Overview

Vertica is an analytical database and query engine that leverages the power of cloud-based technologies but can be deployed on-premises as well. Etlworks includes several pre-built bulk-load ETL Flows optimized for Vertica.

Flows optimized for Vertica

Flow type		When to use
Any to Vertica: Database to Vertica File to Vertica Queue to Vertica Web service to Vertica Well-known API to Vertica	You are here	When you need to extract data from any source, transform it and load it into Vertica.
Bulk load files into Vertica		When you need to bulk-load files that already exist in local or cloud storage without applying any transformations. The flow automatically generates the COPY command and MERGEs data into the destination.
Stream CDC events into Vertica		When you need to stream updates from the database which supports Change Data Capture (CDC) into Vertica in real-time.
Stream messages from a queue into Vertica		When you need to stream messages from the message queue which supports streaming into Vertica in real time.

When to use this Flow type

Unlike some other analytical databases, such as Snowflake and Redshift, etc. Vertica supports fast INSERT without using the bulk-load COPY command. It is recommended to use regular ETL flows where the destination is a database for inserting data into Vertica.

You can use the bulk-load ETL flows where the destination is Vertica (described in this article) when you need to MERGE (UPSERT) data into Vertica.

Prerequisites

Vertica database is up and running and accessible from the Etlworks instance. Read how to work with on-premise data in Etlworks.

How it works

A typical bulk load ETL Flow performs the following operations:

It extracts data from the source.
It then creates CSV files in the staging area, which can be one of the following: local file system, Azure Blob, Google Cloud Storage, or Amazon S3.
If needed, it compresses files using the gzip algorithm.
It checks to see if the destination table exists, and if it does not, creates the table using metadata from the source.
It executes the user-defined COPY SQL statement for the bulk load.
It then optionally executes user-defined or automatically generated MERGE statements.
In the end, it cleans up the remaining files in the staging, if needed.

Flows optimized for bulk load support wildcard processing and change replication using high watermark (HWM).

Step-by-step instruction

Here are the detailed steps on how to ETL data into Vertica using bulk-load flow:

Step 1. Create all required Connections

You will need a source Connection, a Connection for the staging area (Server Storage, Amazon S3, Azure Blob, Google Cloud Storage), and a destination Vertica Connection. When creating a Vertica Connection, is it recommended to enable theAuto Commit.

When to use the specific type of the destination Connection

Connection type	Use this Connection type if
Server storage	This is a default option that works for most cases, even when the Vertica database and Etlworks are not in the same network. Etlworks is using COPY LOCAL command to bulk-load files created by the ETL flow in the local (server) storage into the Vertica.
Amazon S3	the Vertica database is hosted on AWS and supports loading files from the S3 bucket.
Azure blob	the Vertica database is hosted on Azure and supports loading files from the Azure blob.
Google Cloud Storage	the Vertica database is hosted on Google Cloud and supports loading files from the mapped Google Storage bucket.

When configuring a Connection for Amazon S3, Azure Storage, or Google Storage which will be used as a staging area for the bulk load Flow, it is recommended that you select GZip as the value for the Archive file before copying field.

Step 2. Create a CSV Format

Read how to create a CSV Format.

For CSV format, it is recommended to set the Maximum number of rows in file so the flow can split the large datasets extracted from the source into chunks. Loading smaller files will be much faster, specifically if you enable Use Parallel Threads when processing sources by a wildcard. Read more about performance optimizations when loading large datasets.

Step 3. Create a Flow to bulk load data into Vertica

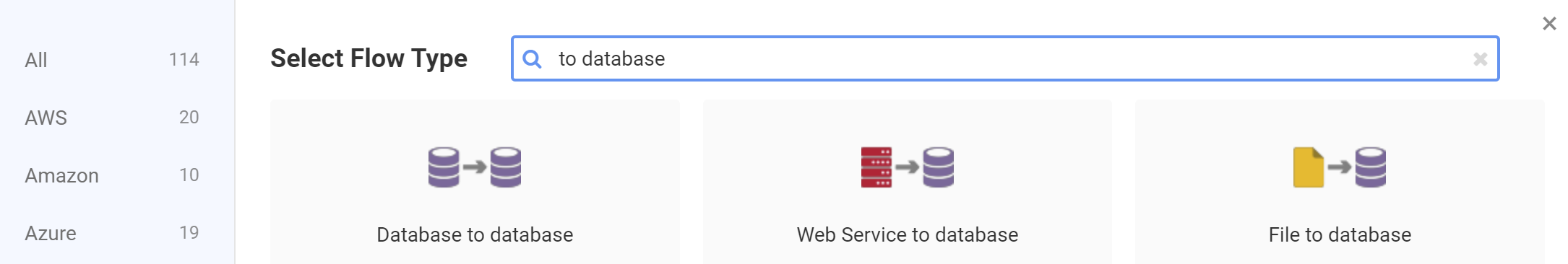

Start creating the Flow by opening the Flows window, clicking +, and typing to Verticainto the search field. Select one of the highlighted Flow types.

Step 4. Set destination Connection

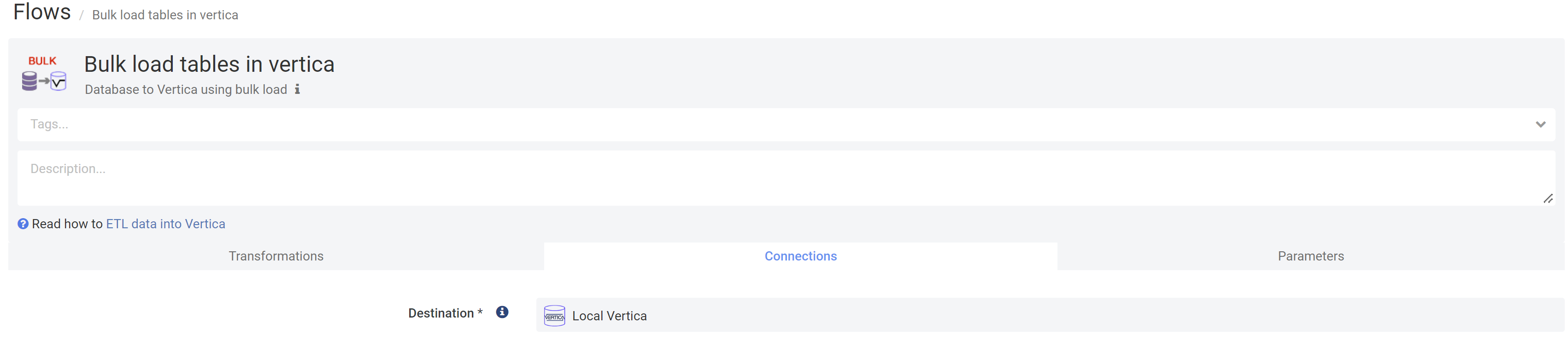

To configure the actual destination, click the Connections tab, and select the Vertica Connection created in Step 1.

Step 5. Set the source (FROM) and the destination (TO)

Depending upon the Flow type, you can select one of the following sources (FROM) for the bulk load Flow:

Database: use the database table or view name as the source (FROM) name. The wildcard names, for example,public.*are supported.
Well-known API: use the endpoint name or the file name as the source (FROM) name.
Web Service: use the endpoint name as the source (FROM) name.
File: use the source file name or a wildcard file name as the source (FROM) name.
Queue: use the queue name as the source (FROM) name.

For all bulk load Flows, the destination Connection is going to be either Server Storage, Amazon S3, Azure Blob, Google Cloud Storage, SFTP, or FTP. Etlworks uses the destination Connection as a staging area.

In TO, select or enter the fully-qualified destination table name or a wildcard table name. If the source (FROM) is entered using a wildcard template, set the destination (TO) to a wildcard as well.

Step 6. Configure SQL for bulk load

Click MAPPING in the transformation row and select the Parameters tab. Select the Copy SQL field.

By default, we assume that the flow bulk-loads from the local (server) storage using COPY FROM LOCAL command.

COPY {TABLE} FROM LOCAL '{PATH}{FILE_TO_LOAD}.{EXT}'
PARSER fcsvparser(header='true') ABORT ON ERROR;

You can modify the SQL statement that will be used to bulk-load data into the destination table. The following {tokens} can be used as a part of the SQL statement:

{TABLE}: the table to load data into.
{TEMP_TABLE}: the staging table name used for MERGE.
{FILE_TO_LOAD}: the file name to load without path and extension.
PATH: the path of the file to load without file name, for example {app.data}/test/.
EXT: the file extension of the file to load, without ., for example, csv.

Read about Vertica COPY command options.

Step 7. Set optional parameters

Click MAPPING in the transformation row and select the Parameters tab

7.1 `COPY SQL` parameters and `Action`

Action: can be either COPY: inserts records from the file(s) into the destination table or MERGE: merges records from the file with the records in the destination table. MERGE requires configuring Lookup Fields.
Lookup Fields: the comma-separated list of fields that uniquely identify the record in the destination table. This field is required if action is set to MERGE.
Predict Lookup Fields- If this option is enabled and Lookup Fields is empty, the system will try to predict the columns that uniquely identify the record in the destination table.
MERGE SQL: this is a user-defined SQL that will be used instead of the default when action is set to MERGE. If nothing is entered in this field, the default MERGE SQLwill be used. The following parameters are automatically populated and can be referenced as {TOKEN} in the SQL:
- {TABLE}: the table to MERGE data into.
- {TEMP_TABLE}: the table to merge data from.
- {KEY_FIELDS}: the fields uniquely identify the record in both tables.
- {FIELDS}: the fields to INSERT/ in the table to MERGE data into.

7.2 Other parameters

Purge File if Succcess: with purge enabled, the staging file will be automatically deleted after the COPY command is successfully executed.
Purge File if Error: if this option is enabled (by default), the staging files will be automatically deleted if a COPY command was executed with an error.
Before COPY SQL: this SQL will be executed on the destination database before running COPY SQL.
Ignore errors when executing Before COPY SQL: if this option is enabled, and there is an error when Before COPY SQL is executed, the error will be ignored.
After COPY SQL: this SQL will be executed on the destination database after running COPY SQL.
Ignore errors when executing After COPY SQL: if this option is enabled, and there is an error when After COPY SQL is executed, the error will be ignored.

7.3 Parameters specific for different source types

Depending on the Flow type, other Flow parameters can be added, as explained below:

The source is a database.
The source is a file or web service.
- Ignore Transformations: if this parameter is enabled, the system will copy files directly into the stage before executing the COPY command. This greatly improves the performance of the load but automatically disables any transformations.
- Delete loaded source files: if this parameter is enabled, the system will automatically delete loaded files from the source.
- Delete source files on error: if this parameter is enabled and there is an error during the load, the system will automatically delete loaded files from the source.
The source is a well-known API.

Step 8. Optionally Configure MERGE (UPSERT)

To merge (upsert) existing data in the destination table with new data:

Set theAction to MERGE.
Define the Lookup Fields: the comma-separated list of fields that uniquely identify the record in the destination table.

Alternatively, you can enable the Predict Lookup Fields which, if enabled, will force the Flow to use various algorithms to automatically predict the fields that uniquely identify the record. Note that it is not always possible to correctly detect the unique fields.

When enabling the Predict Lookup Fields (which is not always accurate) is not an option you can specify the list of table=field pairs in the Lookup Fields. Use the fully-qualified table names and ; as a separator between table=field pairs.

Example:

test1.inventory=inventory_id,database_name;

test1.payment=payment_id,database_name;

test1.rental=rental_id,database_name;

Step 9. Configure how to handle source and destination schema changes

It is quite typical for the source and the destination to have a different number of columns. It is also entirely possible that the order of columns in the source is different than the order of columns in the destination. In either of these cases, by default, the Flow will fail since the COPY command typically cannot load files that have more or fewer columns than the target table or the order of columns is different.

When setting the source-to-destination transformation, it is possible to configure it to automatically handle schema changes. The following configuration options are available:

Reorder columns to load to match order of columns in the target table. Also update column types to match the target: if this option is enabled (it is disabled by default) the system will reorder columns in the data file to match the order of columns in the destination table. When this option is enabled the system also updates the column data types to match the existing columns in the destination table.
Ignore fields in the source that do not exist in the target table: if this option is enabled (it is disabled by default) and the source has more fields than the destination table, the system will automatically exclude extra fields. Options 2, 3, and 4 are mutually exclusive.
Alter target table if the source has columns that the target table doesn't have: if this option is enabled (it is disabled by default) and the source has different fields than the destination table, the system will add extra fields to the target table. Options 2, 3, and 4 are mutually exclusive.
Recreate target table if the source has columns that the target table doesn't have: if this option is enabled (it is disabled by default) and the source has different fields than the destination table, the system will automatically drop and recreate the target table. Options 2, 3, and 4 are mutually exclusive.
Insert null into the fields in the target table that do not exist in the source: if this option is enabled (it is disabled by default) and the destination table has different fields than the source, the system will automatically insert NULL values into these fields in the target.
Create table SQL: by default system automatically generates an SQL for creating a new table if it does not exist. You can override the default SQL by providing a template or a JavaScript code. Read more about how to override the create table SQL.

9.1 Configuring notifications if source and destination have different columns

It is possible to send an email notification if the source and destination have different columns. To configure Flow to send a notification when either source has more columns than the destination or the destination has more columns than the source, use the technique explained in this article.

The only difference is that you don't need to configure the exception handler. If the system detects that the source and the destination have a different number of columns, it will add an exception to the log, which can then be retrieved and sent in the email body as explained above.

Step 10. Optionally configure Mapping

If necessary, you can create a Mapping between the source and destination fields.

Setup incremental Change Replication using high watermark

As in any other Flow type, it is possible to configure a change replication using a high watermark.

When change replication is enabled, only the changed records will be loaded into the destination table.

Basically, all you need to do is set the High Watermark Field and Enable Change Replication for the transformation. Additionally, for better readability, you can set the calculated High Watermark Field Value.

Loading multiple tables by a wildcard name

To load multiple databases objects (tables and views) by a wildcard name (without creating individual source-to-destination transformations), follow the same steps as above, except:

FROM

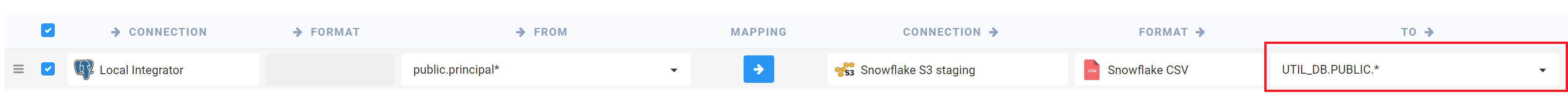

Create a single source-to-destination transformation and set the FROM to a fully qualified source database object name with wildcard characters (* and ?), for example, public.*

By default, all tables and all views that match the wildcard name in FROM will be included. If you want to exclude specific database objects, enter a comma-separated list of the database objects to exclude in the Exclude Objectsfield. If you want to include only specific database objects, enter a comma-separated list of the database objects to include in the Include Objects field.

TO

Set the TO to the SNOWFLAKE_DW.SCHEMA.*, for example, UTIL_DB.PUBLIC.*.

Read how to programmatically change the destination (TO) name.

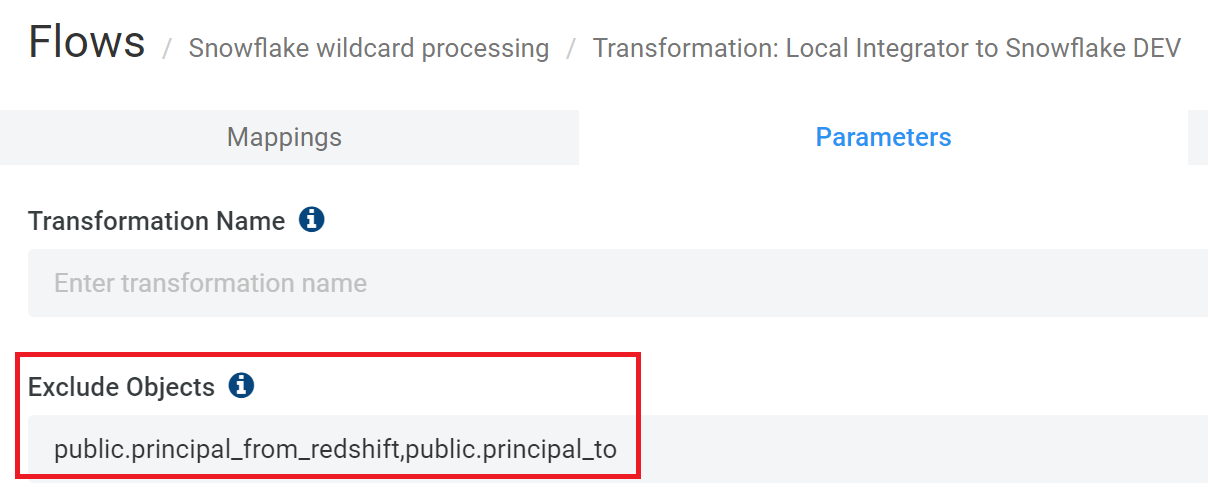

EXCLUDE

Optionally configure the list of the database object to exclude.

To exclude all views, enter all views in the Exclude Objects field.

To exclude all tables, all tables in the Exclude Objects field.

INCLUDE

Optionally configure the list of the database object to include.

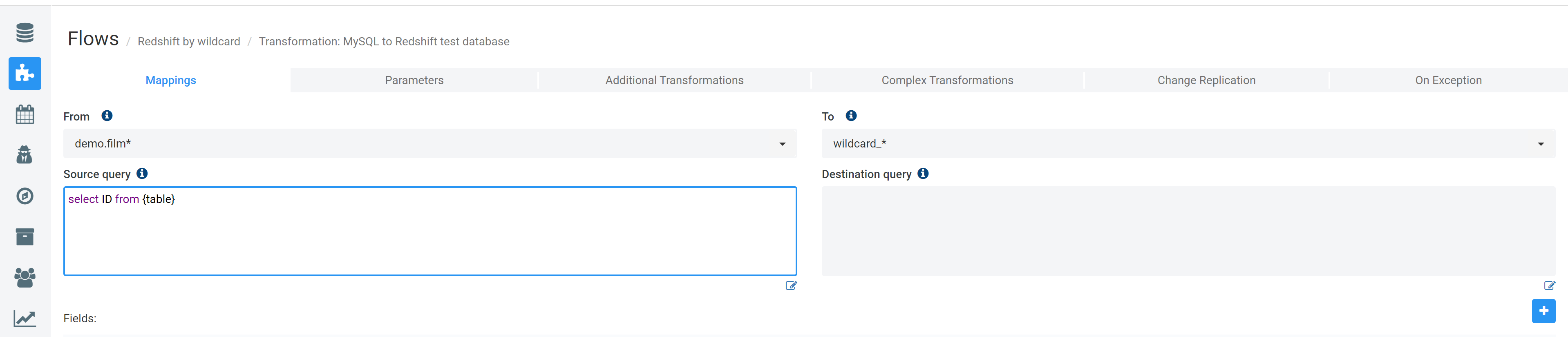

SOURCE QUERY

Optionally configure the Source query. You can use token {TABLE} in the Source query.

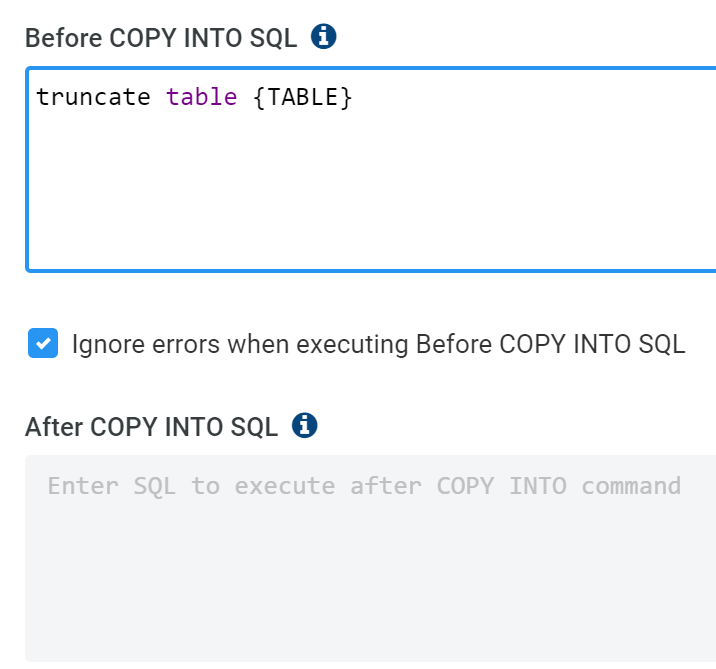

BEFORE/AFTER SQL

If you want to execute any code before and/or after COPY INTO use token {TABLE} in the Before COPY INTO SQL and After COPY INTO SQL.

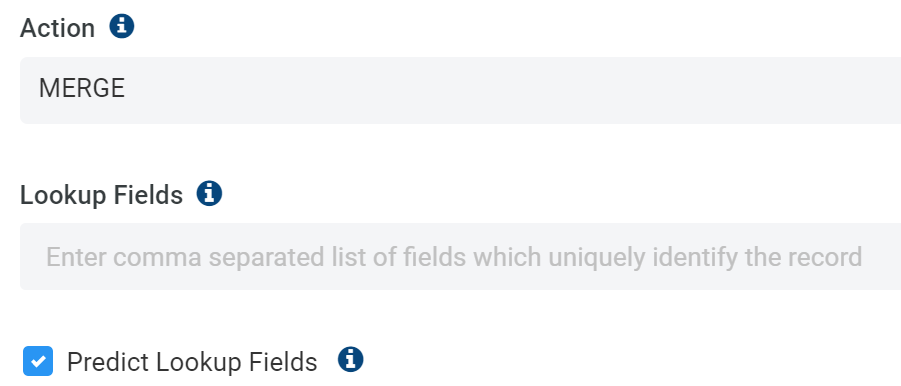

MERGE

If you are configuring MERGE action do not enter anything in the Lookup Fields. Enable Predict Lookup Field instead.

Alternatively, to enable the Predict Lookup Fields option (which is not always accurate), you can specify the list of table=field pairs in the Lookup Fields. Use the fully-qualified table names and ; as a separator between table=field pairs.

Example:

test1.inventory=inventory_id,database_name;

test1.payment=payment_id,database_name;

test1.rental=rental_id,database_name;

HWM CHANGE REPLICATION

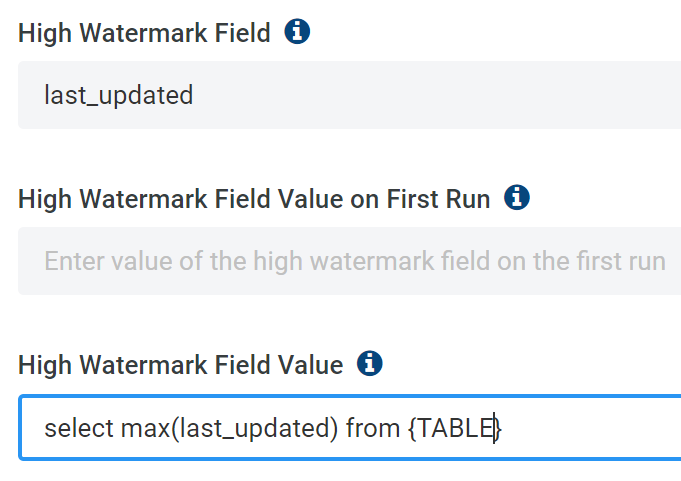

If you are setting up the high watermark change replication with a calculated HWM field, use token {TABLE} in the High Watermark Field Value.

Load large datasets

Flows optimized for the bulk load can move extremely large (billions of rows) datasets from the source to the destination. Below are some of the techniques recommended for archiving better performance.

Configure flow to split CSV files in chunks

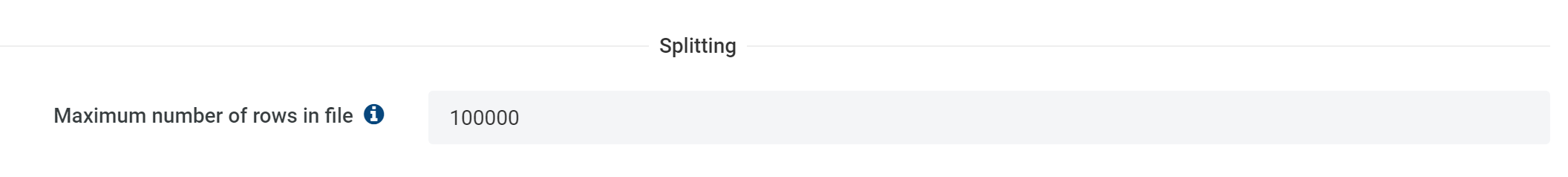

If the Flow is configured to load CSV files, set the Maximum number of rows in file so the Flow can split the large datasets extracted from the source into chunks. Loading smaller files will be much faster. For most cases, we recommend setting this parameter to 100000.

Enable parallel load

When the destination CSV format is configured to split the large dataset in chunks (see above), the source-to-destination transformation in the bulk load Flow can be configured to load chunked files in parallel threads.

To enable the parallel load just enable the parameter Use Parallel Threads when processing sources by a wildcard under MAPPING>Parameters->Common Parameters.

Enable high watermark change replication (HWM)

When high watermark change replication is enabled, only the changed records will be extracted and loaded into the destination table.
