IMPORTANT: Etlworks connections and flows optimized for Azure Synapse Analytics are fully compatible with Microsoft Fabric Warehouse, although some configuration steps differ slightly.

When to use this Flow type

If you already have CSV or Parquet files in Azure Storage and don't need to transform the data, the most efficient way to load these files into Synapse Analytics is to use the Flow type Bulk load files in Azure Storage into Synapse Analytics described in this article.

Use this flow type

1. When you simply want to load CSV or Parquet files that already exist in Azure Storage into Synapse Analytics or Microsoft Fabric Warehouse, without applying any transformations or transferring files over the network.
2. When you want to load CSV files created by the CDC Flow.

Flows optimized for Synapse Analytics

How it works

1. The Flow reads the names of all files matching the wildcard in the specific Azure Storage blob. It can traverse the subfolders as well.
2. The Flow calculates the destination table names based on the source file names.
3. The Flow creates multiple threads, one per destination table but not more than the configurable threshold.
4. The Flow generates and executes the COPY INTO command to load files into the temporary table –– one temporary table per actual destination table.
5. The Flow mergers data in the temporary tables with data in the actual tables.

Alternatively, the Flow can load files directly into the actual destination table by generating and executing the COPY INTO command for files matching the wildcard.

Features

The Flow supports COPY INTO (INSERT), MERGE (UPSERT), and CDC MERGE. With CDC MERGE, the Flow updates the actual destination table by applying INSERT/UPDATE/DELETE events in the same order as they were originated in the source database. It performs it in the most efficient way possible.

Prerequisites for Synapse Analytics

1. The Azure Synapse Analytics dedicated SQL pool is up and running.
2. The Azure Storage blob is created.
3. Files to load exist in the blob.

Prerequisites for Microsoft Fabric Warehouse

1. The Microsoft Fabric Warehouse exists and available from the Internet.
2. The Azure Storage Gen2 account exists, user has read permissions for the specific container and account linked to PowerBI and Fabric workspace (steps 8-11) .
3. Files to load exist in the blob.

Process

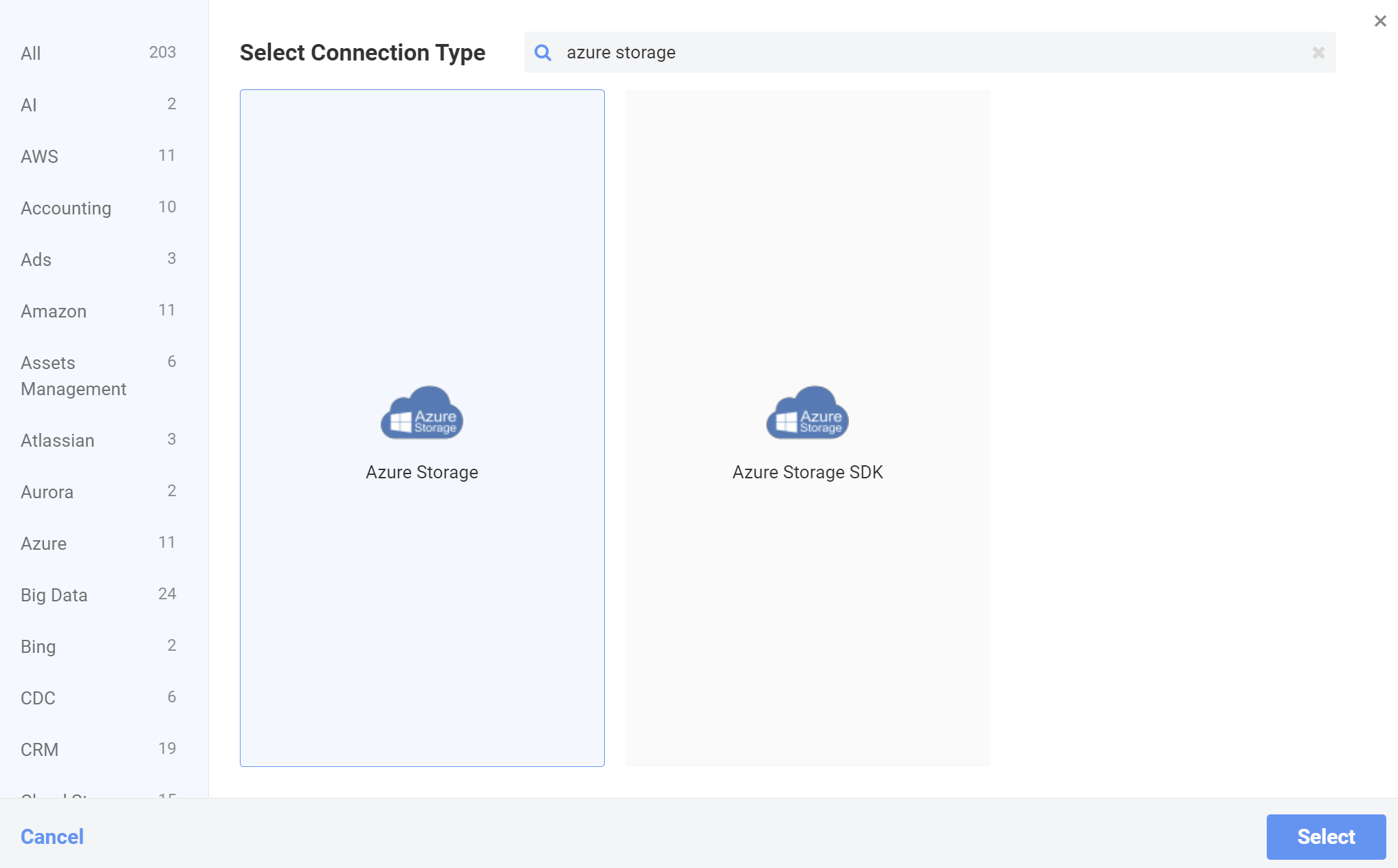

Step 1. Create a new Azure Storage Connection

This Connection will be used as a source to access files stored in the Azure Storage blob. Read more about Azure Storage connector.

Step 2. Create a new Synapse Analytics or Fabric Warehouse

Azure Synapse Analytics Connection or Microsoft Fabric Warehouse connection will be used as a destination.

Step 3. Create a new CSV Format or Parquet Format

This Format will be used to generate the valid COPY INTO command.

Create CSV format to load CSV files and Parquet format to load Parquet files in Azure Storage.

When loading Parquet files the dates and timestamps must be serialized using the following Parquet schema:

"type": ["null", {"type": "long", "logicalType": "timestamp-millis"}]

Step 4. Create a new Flow

This Flow will be used to load files in Azure Storage into Azure Synapse Analytics.

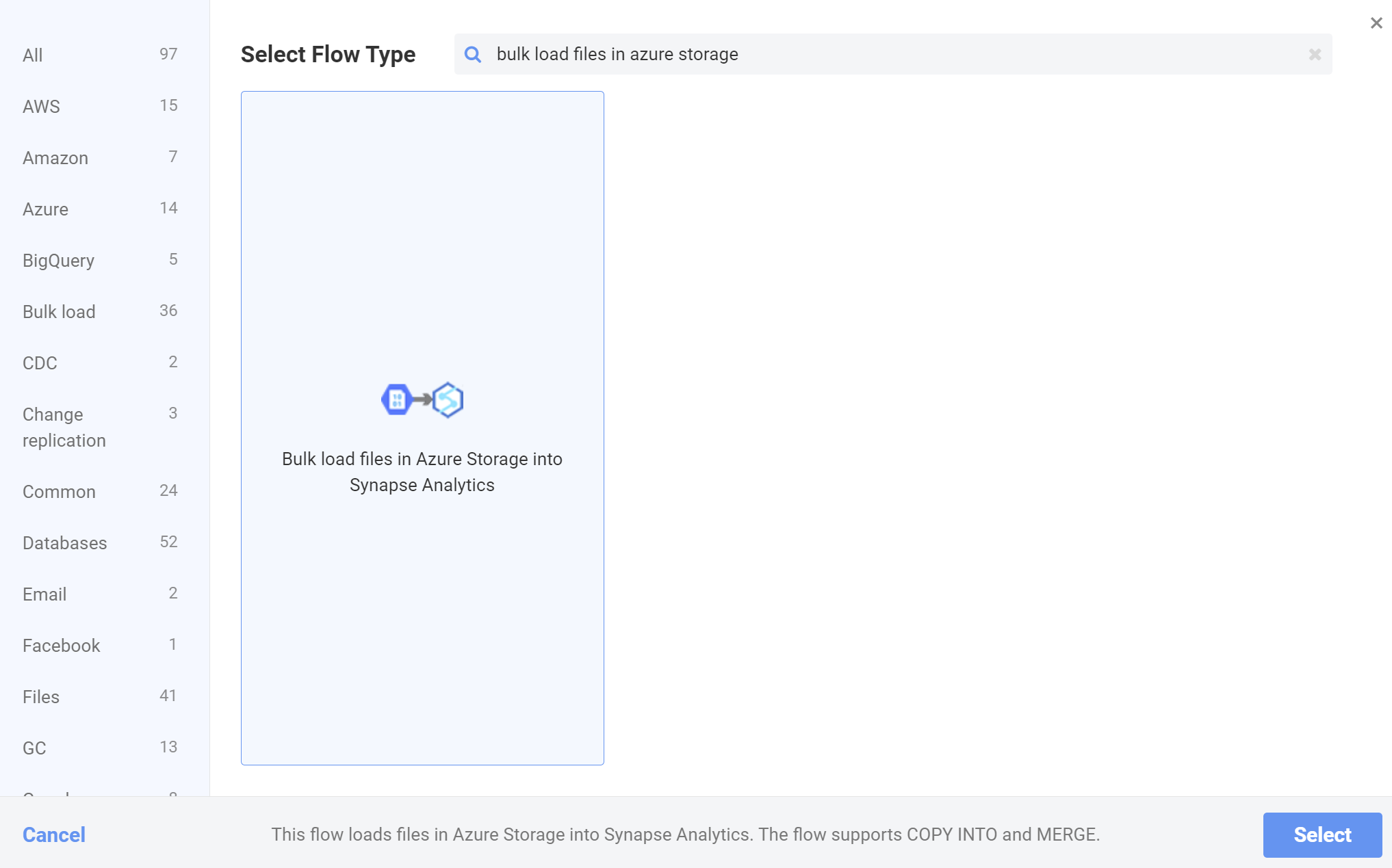

In Flows click [+], type in bulk load files in azure storage, and select the Flow Bulk load files in Azure Storage into Synapse Analytics.

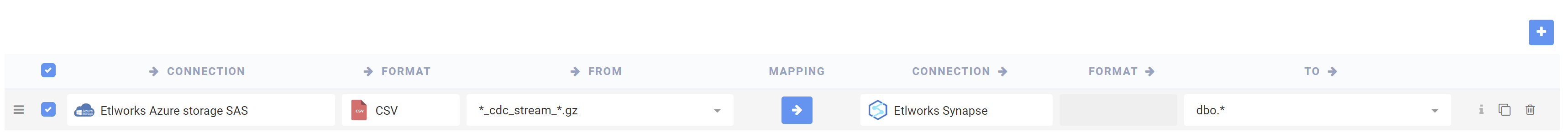

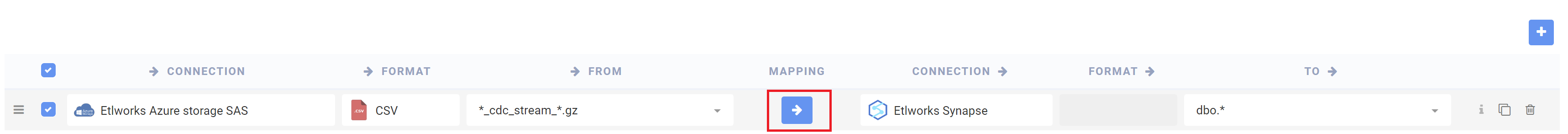

Step 5. Configure load transformation

Select or enter the following attributes of the transformation (left to right):

1. Azure Storage Connection created in step 1.
2. CSV or Parquet Format created in step 3.
3. A wildcard filename that matches the filenames in the cloud storage. Use .csv extension for uncompressed files and .gz for compressed.
4. Synapse Analytics Connection created in step 2.
5. The wildcard destination table name in the following format: database.schema.prefix_*_suffix, where database.schame is a Synapse Analytics database and schema to load data into. Example: test.dbo.*. You don't need to use wildcards when loading into a specific table.

Step 6. Set optional and required parameters

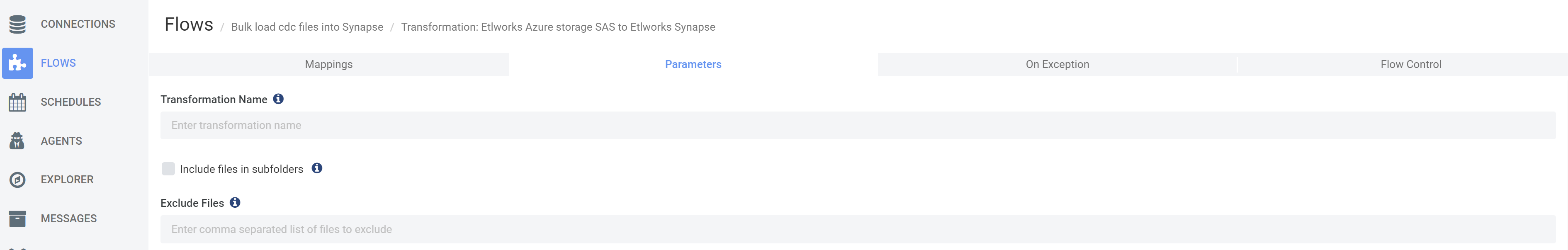

Click MAPPING.

Select the Parameters tab.

Select or enter the following optional and required parameters:

Source Files and Destination Tables

• Include files in subfolders: if this option is enabled, the Flow will load all files that match the wildcard filename (set in FROM) in all subfolders under the main bucket or blob.
• Exclude and Exclude files: the optional comma-separated list of files to exclude and/or include. You can use wildcard file names. These options used together with the wildcard filename set in FROM:
  1. The Flow populates the list of files matching a wildcard filename in FROM.
  2. The Flow excludes files based on the list of exclusions set in Exclude files.
  3. The Flow includes files based on the list of inclusion set in Include files.
• Calculate Synapse Analytics table name: This is an optional parameter used to calculate (using JavaScript) the destination table name based on the source file name. The original file name, without the extension, is stored in the variable name and the actual table name must be assigned to the variable value. For example, let's assume that the source file name is db_schema-table_cdc_stream_uuid.csv. The JavaScript code to calculate the destination table name will be value = name.substring(name.indexOf('-') + 1, name.indexOf('_cdc_stream'));. IMPORTANT: the flow will automatically recognize and transform filenames matching the following template: *_cdc_stream_*.*. If filenames are matching this template there is no need to provide a transformation script.
• Maximum Number of Files to Process: the optional parameter that controls how many files will be loaded in one batch (one run of the Flow). If you expect that at any point in time there will be hundreds of thousands or millions (10^6 - 10^7) of files in the source folder(s), it is recommended to limit the number of files to process to more manageable: hundreds to thousands (10^3-10^5).
• Maximum Number of Parallel Loads: if the value of this optional parameter is greater than 1, the Flow will create multiple threads to load data in parallel –– one thread per table but not more than the threshold set in this parameter.
• Parallel: enable this flag if you have more than one source-to-destination transformation that you want to execute in parallel.
• Purge File if Success: if this option is enabled (by default), the source files will be automatically deleted after the COPY INTO command is successfully executed.

Debug

• Log each executed SQL statement: enable this flag if you want to log each automatically generated and executed SQL statement, including before/after Load SQL.

Error recovery

• Continue loading data into other tables if Error: if this parameter is enabled (it is disabled by default) and there is an error when loading data into some table the flow will continue loading data into other tables. If configured the notification will be sent to the webhook.

Load parameters

• Direct load: if this option is enabled (it is disabled by default) the flow loads data into the Synapse Analytics table directly without an intermediate temporary table. Enabling Direct load is the fastest way to load data into Synapse Analytics but it does not support MERGE and CDC MERGE.
• Use COPY INTO with a wildcard pattern: If this option is enabled (it is disabled by default) the flow loads all files into a specific destination table in one call using COPY INTO with a wildcard pattern. The advantage of this approach is the speed of load. The disadvantage is an inability to handle files with a different number of columns.
• Action: can be COPY INTO which inserts records from the file(s) into the Synapse Analytics table, MERGE which merges records from the file with the records in the Synapse Analytics table, and CDC MERGE which loads CDC events (INSERT/UPDATE/DELETE) in the same order as they originated in the source database. MERGE and CDC MERGE require configuring the Lookup Fields or/and enabling the Predict Lookup Fields.
• How to MERGE: determines how to perform MERGE into the Synapse Analytics table. The default is DELETE/INSERT: DELETE all records in the actual table that also exist in the temp table, then INSERT all records from the temp table into the actual table. If this parameter is set to Native MERGE the flow will execute native Synapse Analytics MERGE SQL. Note that native MERGE requires the table to be created with DISTRIBUTION HASH.
• Create tables with DISTRIBUTION = HASH: if this option is enabled the actual table is created as CREATE TABLE (COLUMNS) (WITH DISTRIBUTION = HASH(PK)). A hash-distributed table has a distribution column that is the hash key. IMPORTANT: Native MERGE requires enabling this option.
• Handle explicit CDC updates: The typical stream produced by CDC flow includes all columns in the monitored table. In some cases, CDC flow captures changes in the explicitly changed columns only, for example, when the supplemental logging for the Oracle table is configured as 'LOG DATA (PRIMARY KEY) COLUMNS' or 'LOG DATA (UNIQUE) COLUMNS'. Enable this option so the CDC MERGE statement can preserve the original values of the columns NOT captured by CDC flow.
• Lookup Fields: the comma-separated list of fields that uniquely identify the record in the target Synapse Analytics table.
• Predict Lookup Fields: If this option is enabled and Lookup Fields is empty, the system will try to predict the columns that uniquely identify the record in the target Synapse Analytics table.
• Extra Lookup Fields: additional columns which will be added to the Lookup Fields automatically set when the Predict Lookup Fields option is enabled.

COPY INTO Parameters

• Line Separator: the default is /n on Windows and 0x0a on Linux. You can override it using this property. It is useful if CSV files are generated in one operating system but will be loaded in another.
• Max # of Errors to Ignore: specifies the maximum number of reject rows allowed in the load before the COPY operation is canceled. Each row that cannot be imported by the COPY operation is ignored and counted as one error. If max_errors are not specified, the default is 0.
• Error File Directory: specifies the directory relative to the container within the COPY statement where the rejected rows and the corresponding error file should be written. If the specified path doesn't exist, one will be created on your behalf. A child directory is created with the name rejectedrows.
• Identity Insert: specifies whether the identity value or values in the imported data file are to be used for the identity column. If IDENTITY_INSERT is OFF (default), the identity values for this column are verified but not imported. Azure Synapse Analytics will automatically assign unique values based on the seed and increment values specified during table creation. Note the following behavior with the COPY command: If IDENTITY_INSERT is OFF, and table has an identity column; a column list must be specified which does not map an input field to the identity column. If IDENTITY_INSERT is ON, and table has an identity column, if a column list is passed, it must map an input field to the identity column. The default value is not supported for the IDENTITY COLUMN in the column list. IDENTITY_INSERT can only be set for one table at a time.
• Date Format: possible values: mdy| dmy| >ymd | ydm | myd | dym. Specifies the date Format of the date mapping to SQL Server date Formats.

COPY INTO parameters

• Truncate Columns: if enabled (disabled by default), theCOPY INTO command will be generated with aTRUNCATECOLUMNS =true option. Strings are automatically truncated to the target column length.
• On Error: what to do in case of any error. Available options are:ABORT_STATEMENT(default),CONTINUE,SKIP_FILE.

Change wildcard pattern for COPY INTO

By default, the flow sets the wildcard pattern to the longest common string for the files that will be loaded into a specific table. WhenUse COPY INTO with a wildcard patternis enabled it is possible to change the wildcard pattern using JavaScript.

Available variables:

• etlConfig: the config.
• table: the table name.
• commonFileName: the default wildcard pattern.
• files: the list of files.

Example

value = table + '_cdc_stream_';

ELT

• Set variables for Before and After SQL: code in JavaScript to set the variables that can be referenced as {varname} in the Before and/or After SQL. To set the variable add it as a key-value pair to the script variable 'vars'.
  • Example: vars.put('schema', 'abc');
  • Example of the SQL: insert into test (schema_name) values ('{schema}')
• Before COPY SQL: this SQL will be executed before running COPY INTO SQL.
• Ignore errors when executing Before COPY SQL: if this option is enabled, and there is an error when Before COPY SQL is executed, the error will be ignored.
• Before COPY SQL is a script: if this option is enabled, Before COPY SQL will be executed as a TSQL Script.
• After COPY SQL: this SQL will be executed after running COPY INTO SQL.
• Ignore errors when executing After COPY SQL: if this option is enabled and there is an error when After COPY SQL is executed, the error will be ignored.
• After COPY SQL is a script: if this option is enabled, After COPY SQL will be executed as a TSQL script.

Handling source schema changes

• Alter target table if the source has columns that the target table doesn't have: if this option is enabled (it is disabled by default), and the source has different fields than the target table, the system will add extra fields to the target table.

Create a new Synapse connection for each table

Enable this option if you want to execute ETL scrips as a part of the load. Synapse Analytics allows only one stored procedure or TSQL code fragment to be executed from a single connection at any given time. So when the same connection is shared by all loaders (each loading into its own Synapse table) AND the ELT scripts are used the queries are getting queued which creates a performance bottleneck.

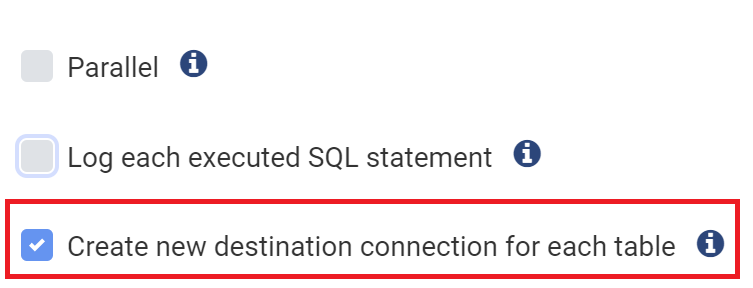

To enable select Create new destination connection for each table:

Step 7. Optionally, add a mapping.

The mapping can be used to:

1. Rename the column.
2. Exclude the column.
3. Change the column data type for tables automatically created by the flow.

Configure mapping

Select transformation and click MAPPING.

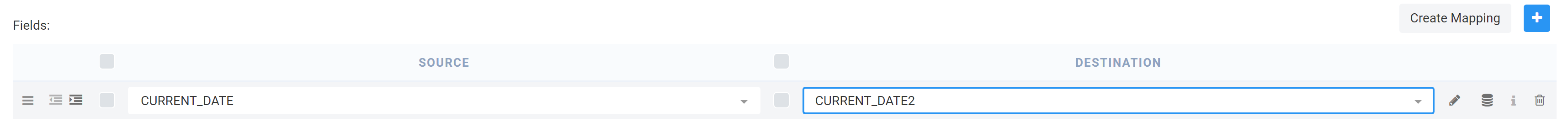

Add mapping for column CURRENT_DATE.

The renaming or excluding the column in mapping will work for all tables that have this column. If the table does not have the column the mapping will be ignored.

Step 8. Optionally, add more source-to-destination transformations

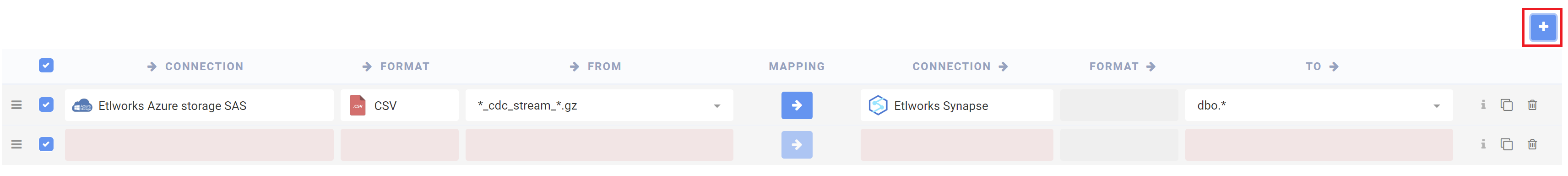

Click [+] and repeat steps 5 to 6 for more locations and/or file name templates.

Handling Processed Files

By default, after processing, files remain in the source folder. However, you can configure the Flow to either delete, move, or mark files as processed.

Delete processed files

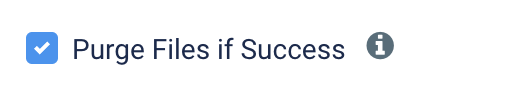

Enable Purge Files if files success under MAPPING > Parameters.

Skip Already Processed Files

Instead of deleting files, the Flow can mark files as processed and keep them in the folder. This prevents reprocessing without physically removing files.

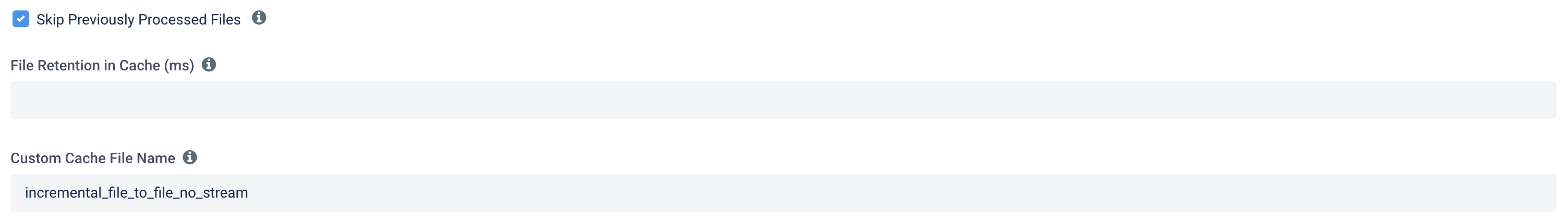

To enable this feature, use the following UI controls under MAPPING > Parameters:

• Skip Previously Processed Files – Ensures only new or modified files are processed.

• File Retention in Cache (ms) – Controls how long processed file information is stored in cache.

• Custom Cache File Name – Specifies a custom file for storing processed file records.

Move Processed Files

Instead of deleting or marking files, you can move them to another location.

To configure this:

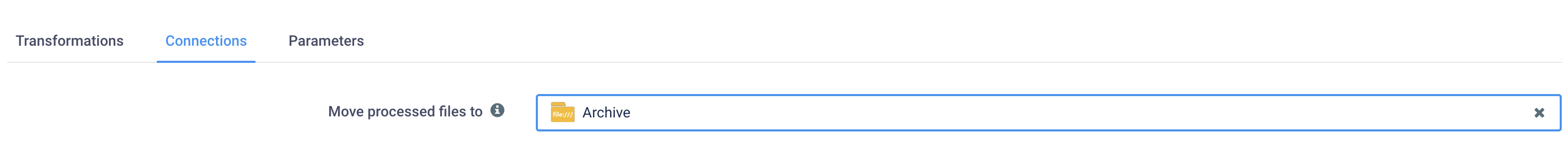

• Go to Flow > Connections tab and set Move processed files to.

• This moves processed files to a different location instead of leaving them in the source folder.

• This option is ignored if Purge Files if files success or Skip Previously Processed Files is enabled.
