About ActiveMQ
Apache ActiveMQ® is the most popular open-source, multi-protocol, Java-based message broker. It supports industry-standard protocols so users get the benefits of client choices across a broad range of languages and platforms. Read more about ActiveMQ.
When to use this connector
- to read messages from and write messages to a given ActiveMQ queue.
- to stream messages from the queue to various destinations.
- to implement a log-based CDC with a message queue.
Create a Connection

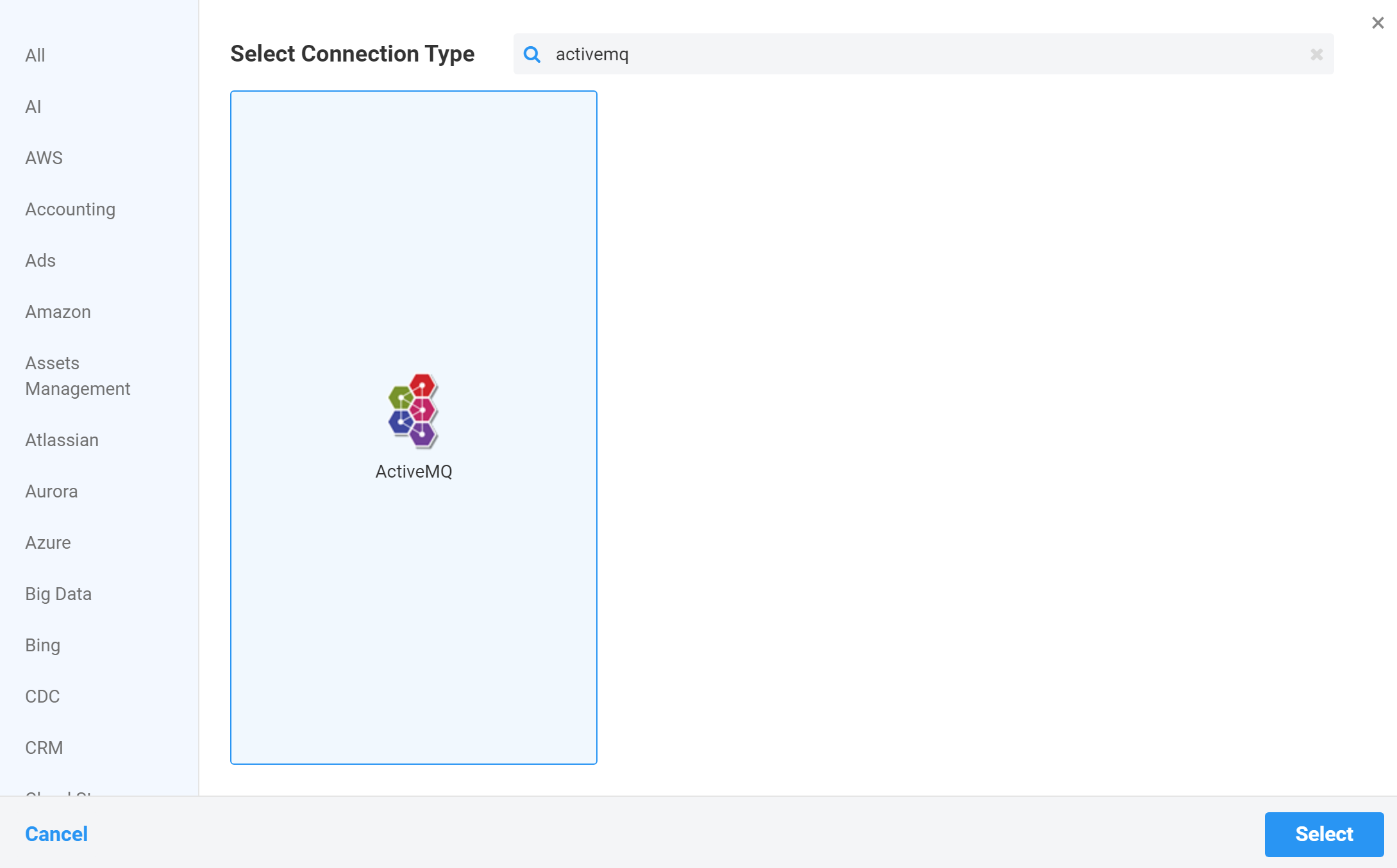

Step 1. In the Connections
window, click +
, and type in activemq
.
Step 2. Select ActiveMQ
.
Step 3. Enter the Connection parameters.
Connection parameters
-
URL
: the connection URL in the formatssl://host:port
. For example for ActiveMQ hosted on AWS:ssl://a-c3c415b0-d5e1-4ee6-b8f1-e09d0106f719-1.mq.us-east-1.amazonaws.com:61617
. -
Queue name
: the optional ActiveMQ queue name. -
User
: the user name. -
Password
: the password. -
Max number of records to read
: the total maximum number of records to read from the queue. Set it to a reasonable number to allow the system to process records in micro-batches. If nothing is entered the system will read records from the queue until there are no more records. -
Number of retries before stop polling
: the number of retries before stop polling if poll returns no records. -
Retry N minutes before stop pollingDelay between retries
: the number of minutes to retry before stop polling if the poll returns no records. -
Wait to get a next message (ms)
: the number of milliseconds to wait for a new message in the queue. -
Value Serializer
: the type of message to create. Options:- String - the message is a string. Use it for text formats, such as JSNO, XML, etc.
- Array of bytes the message is an array of bytes. Use it for binary formats, such as Parquet or Avro.
- Object - use it to serialize Java objects.
-
Other parameters:
additional configuration options for the ActiveMQ connection.
