OneDrive for Business connector

When to use this connector

Use this connector to create Flows that work with files in Microsoft OneDrive for Business.

To access files stored in consumer OneDrive accounts, use the Consumer OneDrive connector.

Create a Connection

Step 1. In the Connections window, click +, and type in ondedrive.

Step 2. Select OneDrive for Business.

Step 3. Enter Connection parameters.

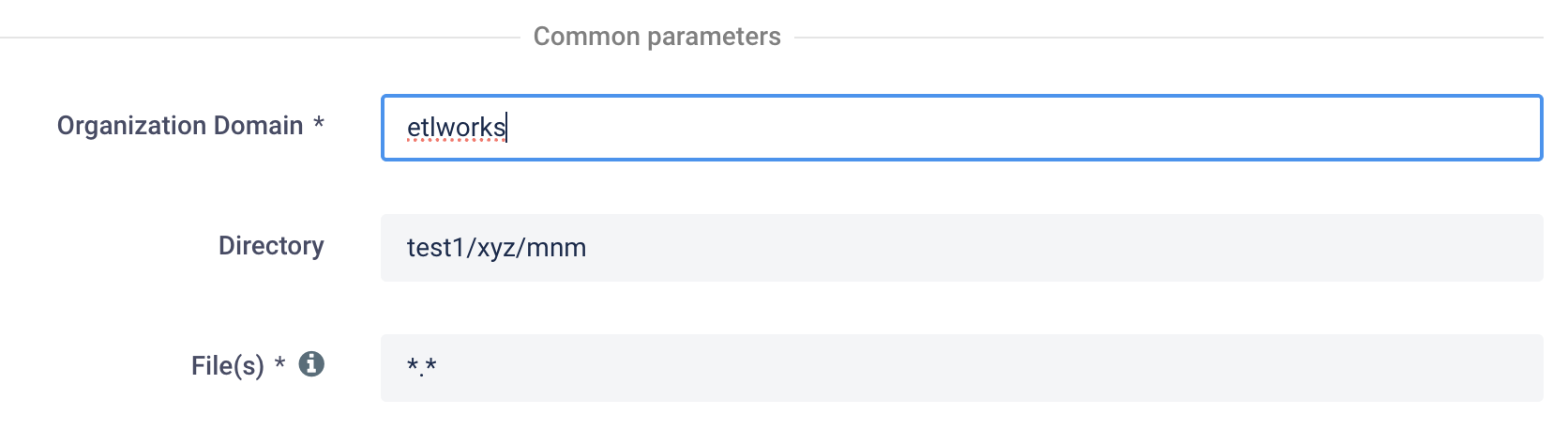

Connection Parameters

• Organization Domain: your Office 365 domain, for example, etlworks.
• Directory: the actual directory with files. This parameter is optional.
• Files: the actual file name or a wildcard file name, for example, *.csv.
• User: username (typically an email address).

Authentication with username and password

SelectUsername and passwordinAuthentication Method. Note that this is a default Authentication Method.

Enter:

• User: username.
• Password: password.

Authentication with OAuth

Authentication with OAuth is the only option to connect to OneDrive for Business if 2FA or SSO is enabled for the Office 365 account.

SelectOAuthinAuthentication Method.

Enter email address in User.

ClickSign in with Microsoftand follow on-screen instructions to continue authentication. Optionally changePermissions.

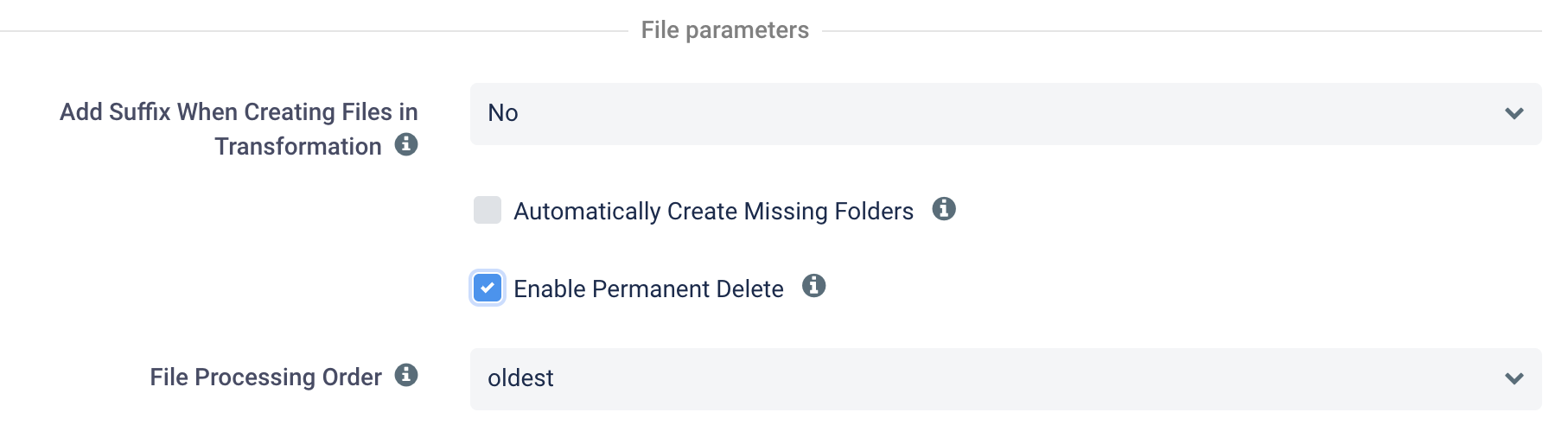

Other parameters

• Add Suffix When Creating Files in Transformation: you can select one of the predefined suffixes for the files created using this Connection. For example, if you select uuid as a suffix and the original filename is dest.csv, Etlworks will create files with the name dest_uuid.csv, where uuid is a globally unique identifier such as 21EC2020-3AEA-4069-A2DD-08002B30309D.

This parameter works only when the file is created using source-to-destination-transformation. Read how to add a suffix to the files created when copying, moving, renaming, and zipping files.

• File Processing Order: Specifies the order in which source files are processed when using wildcard patterns in ETL and file-based flows (e.g., copy, move, delete). The default setting is Oldest, meaning files are processed starting with the oldest by creation or modification time. Choose from various criteria such as file age, size, or name to determine the processing sequence:
  • Disabled: wildcard processing is disabled,
  • Oldest/Newest: Process files based on their creation or modification time, Ascending/Descending: Process files in alphabetical order, Largest/Smallest: Process files based on their size.

Decryption

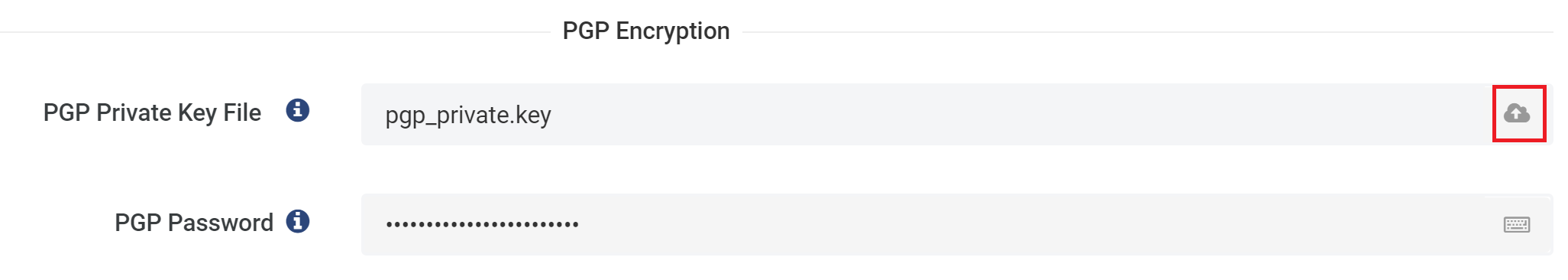

When OneDrive for Business Connection is used as a source (FROM) in the source-to-destination transformation, it is possible to configure the automatic decryption of the encrypted source files using the PGP algorithm and private key uploaded to the secure key storage.

If the private key is available, all source files processed by the transformation will be automatically decrypted using the PGP algorithm and given key.  Note that the private key requires a password.

Read how to generate a pair of public/private keys.
