File as a transformation source

This article covers transformations where a file (or files matching a wildcard) is the source. The transformation extracts the file's contents, optionally applies a format, transforms rows, and loads them into the destination.

For end-to-end ETL setup, see Extract, Transform, and Load (ETL) data — source is a file.

How the source filename is calculated

The actual file Etlworks reads depends on two settings on the connection and on whether you used a wildcard in FROM:

• Enable Wildcard File Name — whether wildcards are allowed at the connection level.
• Override Wildcard File Name in Transformation — whether the transformation's FROM field overrides the connection's filename. On by default.

The combination produces the actual filename:

Connection filename	FROM in transformation	Override Wildcard On?	Actual file path
*.csv	test.csv	Off	/dir/test.csv
*.csv	*test*.csv	Off	/dir/*.csv (connection wins)
abc.csv	test.csv	Off	/dir/test.csv
*.csv	test.csv	On	/dir/test.csv
*.csv	*test*.csv	On	/dir/*test*.csv (transformation wins)
abc.csv	test.csv	On	/dir/test.csv

In every case, the connection's Directory is prepended.

Work with wildcard filenames

Etlworks can process files that match a wildcard pattern, e.g. *.csv.

By default, Etlworks processes one file at a time. If several files match the wildcard, the connection's Enable Wildcard File Name algorithm decides which one. See Process all matching files for the multi-file pattern.

1. On the connection, pick an algorithm for Enable Wildcard File Name:
   • oldest / newest — sorted by modification time.
   • ascending / descending — sorted alphabetically by filename.
   • largest / smallest — sorted by file size.



2. In the transformation, set FROM to the wildcard pattern (e.g. Inbound*.csv).



Note: The wildcard matches files in the configured folder only, unless Include files in subfolders is enabled on the transformation. The FROM value also supports File Path Modifiers for excluding files, skipping previously processed files, and sorting. See Selecting Files and Folders in Flows.

Process all files in a folder

For processing every file matching a wildcard in a single flow run, see Process files in an ETL flow using wildcard filenames in Get started with files.

Source filename as a variable

Each time Etlworks reads a source file, it stores the filename in flow-scoped global variables. Useful when working with wildcards or generated filenames where you can't hardcode the name.

The variables are named after the transformation. If the transformation name is *.CSV TO PIPE.JSON 1 and the actual file is /user/local/temp/pipe.csv, three variables are created:

Variable	Value (for the example above)
{transformation}.FULL.FILE.NAME.TO.READ	/user/local/temp/pipe.csv
{transformation}.FILE.NAME.TO.READ	pipe.csv
{transformation}.BASE.FILE.NAME.TO.READ	pipe

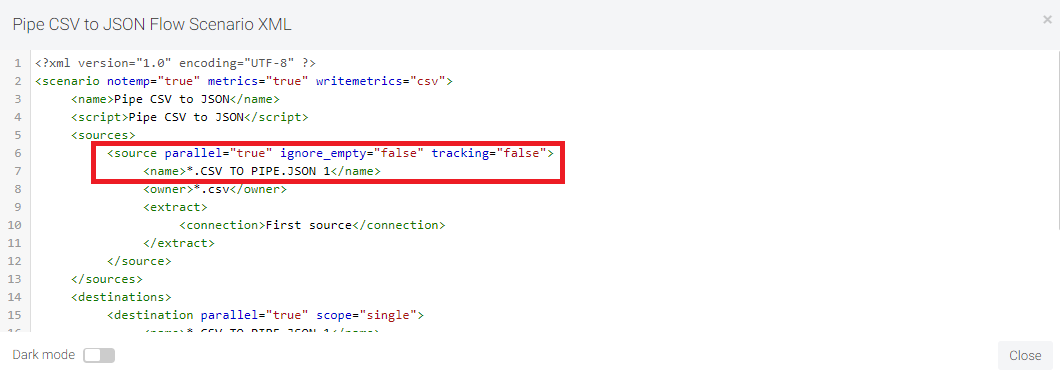

The transformation name = the Transformation Name. Click View Flow XML on the flow to see it; it's the name tag under source.

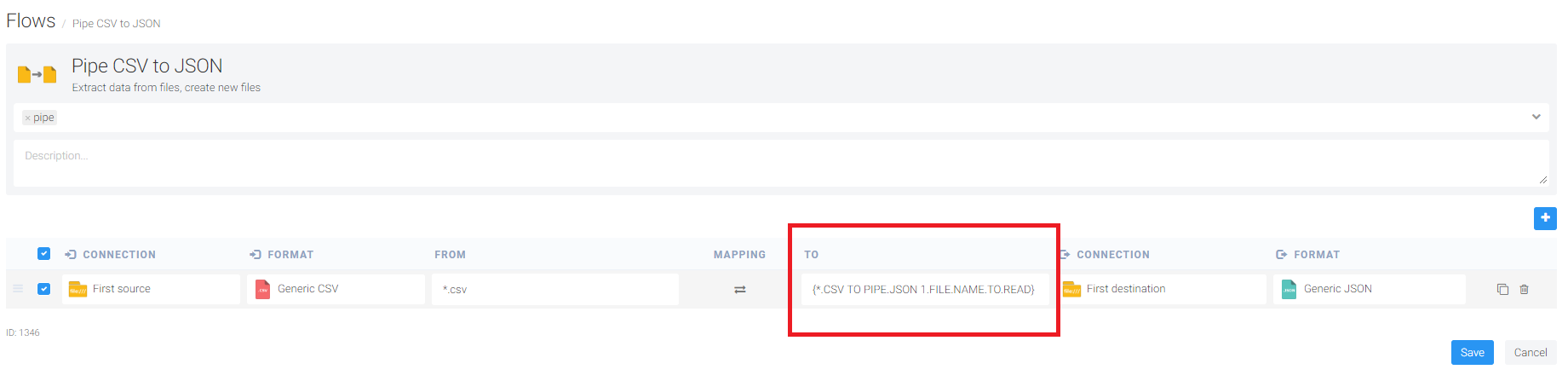

Reference any of these {variables} in connection parameters, FROM/TO fields, scripts, etc.

Access the source filename in JavaScript

From any script that has access to the dataSet object:

com.toolsverse.config.SystemConfig.instance().getProperties().put(
    'my-key',
    com.toolsverse.util.FilenameUtils.getName(dataSet.getFileNameToRead())
);

Read it back elsewhere:

var sourceFileName = com.toolsverse.config.SystemConfig.instance()
    .getProperties().get('my-key');
