Check the results of a Flow execution

Overview

When the Flow runs, the system records its status in the database.

The status of the last execution is displayed in the EXECUTED column in the Flows window and includes a link to the Flow Statistics dashboard.

When a Flow execution fails, the Success link in the EXECUTED column changes to Error. For a canceled Flow, the status is displayed as Canceled.

To view errors and logs

1. Click Status to open the dashboard.
2. Click View Exception to view the exception log.
3. Click View Console to view the Flow log.

The exception log contains detailed information about each error.

Read how to insert more information into the log.

Flow Statistics

The Flow Statistics dashboard displays stats for the last time the Flow has been executed, as well as a run history. The last 50 runs are available, by default, with the option for more runs.

It is available from both the Flows and the Scheduler.

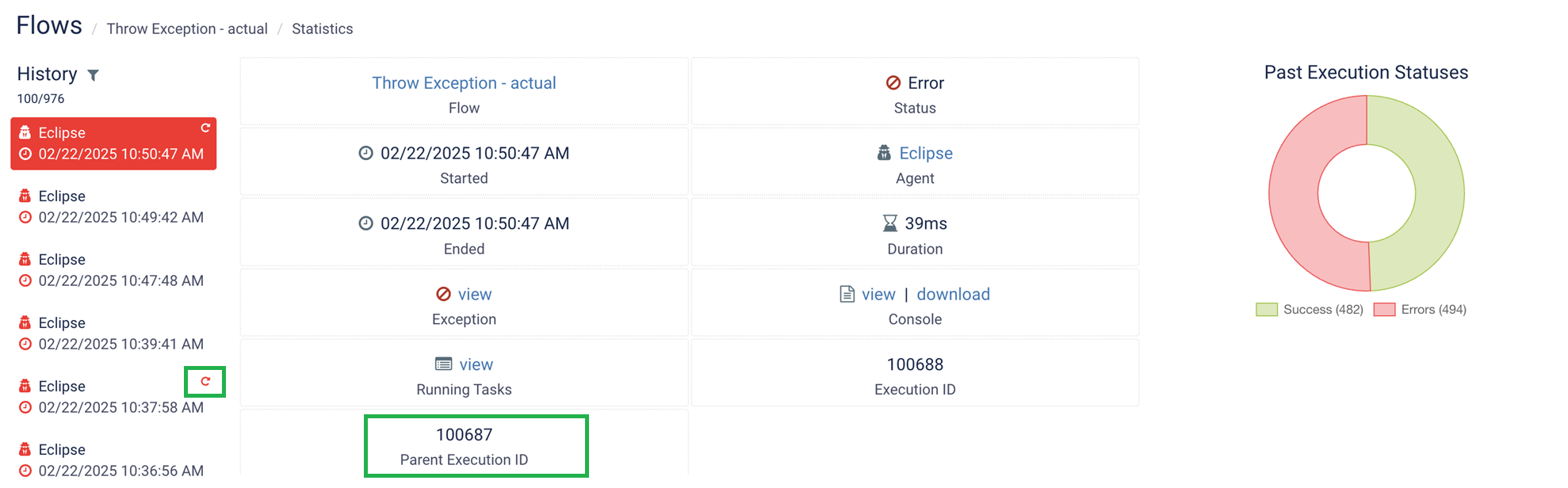

Visual indicator for retries

Flow history visually indicates retries triggered by the scheduler or integration agent, including a parent process ID. This helps differentiate retries from regular executions.

Filter Flow execution history

To filter Flow execution history, click the filter button, select or enter the filter's parameters and click Apply.  Note that each execution has a unique ID.

Flow metrics

Metrics

Metrics display Records Metrics for the specific source-to-destination transformation, such as the number of records extracted and loaded:

Transformation status

	Success	The transformation was successfully executed.
	Warning	The transformation was executed with a warning or not executed at all. Check the Warning column for more details.
	Error	The transformation was executed with an error. Click the error icon for more details.

File Metrics

File Metricsdisplay metrics for file operations, such as copy, move, delete, rename, etc:

Flow metrics for nested Flows

Metrics for nested Flows are grouped by the actual Flow the metrics belong to:

Recording all steps when executing nested flow

By default the flow only reports Records Metrics (metrics for processed source-to-destination ETL transformations) and File Metrics (proceeded files and folders). If you want the nested flow to report all executed steps, for example scripts, calling HTTP endpoints, etc., enable Track metrics for all types of flows for the main nested flow.

When this option is enabled the Records Metrics tab includes all flows, executed as a part of the main nested flow.

Independently track metrics for each loop iteration

By default the flow aggregates Records Metrics across all loop iterations. To track metrics for each loop iteration independently enable Track metrics for loops.

When this option is enabled the dashboard displays metrics for each loop iteration:

Flow log

The Flow dashboard always includes a link to the Flow log.

Errors

When a Flow execution fails, the Flow Statistics dashboard includes a link to the error:

If you click on the link, a pop-up box opens up with detailed information about the error:
