SQL transformation (source query)

When to use this transformation

Use SQL transformation to extract data from the relational databases or transform data by running a SQL on unstructured or semi-structured data sources, such as a file, a response from the API, a data feed from the social network, etc.

Create a transformation

When creating a source-destination transformation, enter a query into the Source query field on the Mappings tab.

Write SQL queries when working with relational databases

Use native SQL syntax of the source relational database. In addition to SELECT SQL statements, you can execute stored procedures and functions as long as they return a cursor.

Write SQL queries when working with files and API endpoints

It is possible to use SQL to extract data from the nested source dataset (such as JSON or XML) and convert it to a flat or nested array.

Applying an SQL transformation to the nested dataset will create an array of columns and rows which can be mapped, for example, to the table in the relational database.

Writing SQL queries that will be executed on a dataset of any type is not much different from writing queries that will be executed on a relational database:

SQL syntax

• Each query starts with the select keyword, followed by a comma-separated list of fields to include in the query.
• It is possible to select all fields by using *, as in select *.
• Fields with spaces must be surrounded by double quotes: "first name".
• It is possible to use aliases for fields, such as "first name" first_name.
• It is possible to use mathematical expressions to calculate field values, such as salary + bonus compensation.
• Typically there is no FROM (expect FROM to be used when selecting data from a nested data object). The following query will work just fine: select first, last.
• String literals must be enclosed in single quotes: 'john'.
• Use the where condition for filtering out records in a dataset: select * where salary > 50000.
• Use field != null to compare a field value with null.
• It is possible to use JavaScript functions in expressions for calculating field values and in the where clause: select * where first_name.toLowerCase().trim() = 'john'.
• It is possible to use aggregation functions, such as SUM, AVG, MIN, MAX, COUNT to calculate field values. Using aggregation functions requires using the group by expression.
• Use order by fields for ordering datasets. The asc and desc modifiers are allowed: select * where salary > 50000 order by salary desc.
• It is important to understand the order of operations:
  • First, the where clause conditions are applied.
  • Then group by is applied.
  • Then fields will be calculated.
  • Finally, order by is applied.

Order of columns

The built-in SQL engine does not always return columns in the same order as the order of columns in the SELECT statement. The following rules are applied:

1. If the column already exists in the source, the engine will keep the position of the column in the source.
2. If it is a new column or new alias for the existing column, the engine will place the column in the position defined by the position in the SELECT statement.

For example, for the source

OrderNum, OrderDate, Amount

the following SQL statement

select Amount, OrderDate, OrderNum

will still return columns in the original order

OrderNum, OrderDate, Amount

and the SQL statement

select Amount amt, OrderDate order_date, OrderNum order_num

will return columns in the following order:

amt, order_date, order_num

Basically, if you care about the order of columns, always use aliases with the different (than columns) names.

Aggregation functions

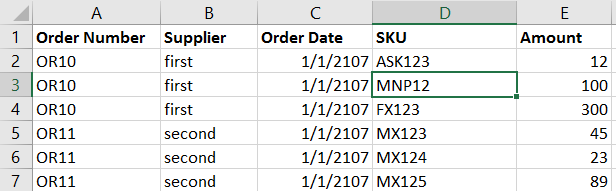

Suppose that the source data object is an Excel file, containing order items:

The goal is to read a source Excel file and load it into two database tables:

• Order: OrderNum, OrderDate, OrderAmount. Where Amount is calculated as a SUM(amount) for all items in the order.
• Item: OrderNum, OrderDate, Supplier, SKU, Amount.

To split a single source dataset into two, we will be using the technique described here.

To create the first transformation, which populates the Order table, simply write a Source SQL query that includes an aggregation function, as in the example below:

select "Order Number" OrderNum, "Order Date" as OrderDate, sum(amount) OrderAmount
group by "Order Number"

We are using the group by expression together with SUM(amount).

The following aggregation functions are supported:

• SUM(field): sum of all aggregated values of the field.
• MIN(field): minimum value of the field.
• MAX(field): maximum value of the field.
• AVG(field): average value of the field.
• COUNT(*): number of records.

The group by expression can include one or more comma-separated field names (s) to group the dataset.

Expressions are not supported as parameters for aggregation functions.

Set operations

The following set operations are supported when writing SQL extracting data from files, API endpoints, and social websites:

• UNION: the UNION operator is used to combine the result sets of two or more SELECT statements. Unlike UNION operator used when running a query against relational databases, it does not remove duplicate rows between the various SELECT statements, so it works similarly to UNION ALL.
• INTERSECT: the INTERSECT operator is used to return the results of two or more SELECT statements. However, it only returns the rows selected by all queries or data sets. If a record exists in one query and not in the other, it will be omitted from the INTERSECT results.
• MINUS: return all rows in the first SELECT statement that are not returned by the second SELECT statement.

Write queries for nested data objects.

Let's assume that the JSON document below is returned by the web service.

{
   "requestId":"185d6#14b51985ff0",
   "success":true,
   "result":[
      {
         "id":"433455454",
         "name":"all fields",
         "searchableFields":[
            {
               "name":"field1",
               "displayName":"Just field 1",
               "dataType":"string",
               "length":36,
               "updateable":false
            },
            {
               "name":"field2",
               "displayName":"Just field 2",
               "dataType":"string",
               "length":50,
               "updateable":false
            },
         ],
         "fields":[
            {
               "name":"leadId",
               "displayName":"Lead Id",
               "dataType":"integer",
               "updateable":false
            },
            {
               "name":"role",
               "displayName":"Role",
               "dataType":"string",
               "length":50,
               "updateable":false
            },
            {
               "name":"isPrimary",
               "displayName":"Is Primary",
               "dataType":"boolean",
               "updateable":true
            },
            {
               "name":"externalCreatedDate",
               "displayName":"External Created Date",
               "dataType":"datetime",
               "updateable":true
            }
         ]
      }
   ]
}

The goal is to extract all searchableFieldsand fieldsfrom the nested JSON and create a flat CSV file.

This can be accomplished by using the following SQL query, which is applied to the nested source JSON:

select name, displayName, 'searchable' as fieldType
from result.searchableFields
union
select name, displayName, 'regular' as fieldType
from result.fields

The idea is to provide a path to the nested dimension in the FROM clause. The elements of the path are separated by a comma (.). Using the example above, the path to the nested attributes under the searhableFields is result.searhableFieldsand the path to the nested attributes under the fields is result.fields.

If you want to include some of the fields from theparentobject, as well as fields from thenested object, use theowner.qualifier:

select result.name as apiName, searchableFields.name, searchableFields.displayName,
'searchable' as fieldType
from result.searchableFields
union
select result.name as apiName, fields.name, fields.displayName,
'regular' as fieldType
from result.fields

Write queries when the column may not exist in the data object

Let's assume that there is a JSON data object like below:

{
    "type": "type",
    "data": {
       "unitId": "1234",
       "type": "test1",
       "odometer": 12,
       "timestamp": "01/01/2023"
     }
}

You only need data from the "data" node so the query will look below:

select
   unitId,
   odometer,
   type,
   timestamp
from data

It is possible that in some data objects, the "odometer" attribute is missing:

{
   "type": "type",
   "data": {
      "unitId": "456",
      "type": "test2",
      "timestamp": "02/02/2023"
   }
}

If it is the case, the query above will fail. The workaround is to replace odometer with dataSet.getFieldValue(dataSet.getRecord(0), 'odometer') as odometer:

select
   unitId,
   dataSet.getFieldValue(dataSet.getRecord(0), 'odometer') as odometer,
   type,
   timestamp
from data

Write queries when nested node may not exist in the data object

In a typical nested JSON or XML, any node can be potentially empty or even not exist for some rows. Example:

<root>
    <row>
      <nested_node1>
        <field1/>
        <field2>abc</field2>
      </nested_node1>
      <nested_node2>
        <field1/>
        <field2>xyz</field2>
      </nested_node2>
    </row>
    <row>
      <nested_node1>
        <field1/>
        <field2>abc</field2>
      </nested_node1>
    </row>
    <row>
       <nested_node2>
         <field1/>
         <field2>abc</field2>
       </nested_node2>
    </row>
</root>

If you will try to retrieve field1 and field12 for the <nested_node1> using SQL below:

select nested_node1.field1,nested_node1.field2 from root.row

or

select nested_node1.fieldFieldValue(0, 'field1'),
       nested_node1.fieldFieldValue(0, 'field2')
from root.row

you will get a null pointer exception because for some of the records the <nested_node1> is null (does not exist).

To solve the problem use getNullableFieldValue.

select dataSet.getNullableFieldValue(nested_node1).getFieldValue(0, 'field1'),
       dataSet.getNullableFieldValue(nested_node1).getFieldValue(0, 'field2')
from root.row

If there are multiple levels of nestedness, starting from the first nested field use:

dataSet.getNullableFieldValue(firstNestedField).
getNullableFieldValue(0, "field name in the middle").
getFieldValue(0, "last field name")

The first call to dataSet.getNullableFieldValue with a single argument will return an empty dataset if the firstNestedField is null.

The second call to getNullableFieldValuewith a row number (0) and field-in-a-middle name will do the same if the field-in-a-middle is null.

The last call to getNullableFieldValue will return null if the last-field is null, just like we want it.
