Byte Array Format

When to use this Format

The Byte Array format is ideal for scenarios where you need to transfer messages between two queues without altering their content in any way. This format is particularly useful when routing unmodified messages from one system to another, such as between two different message brokers (like MQTT, ActiveMQ, etc.), or when ensuring the raw data integrity during transit between systems. Since no transformation is applied, the data is transferred exactly as it was received, preserving the original structure and format.

Create format

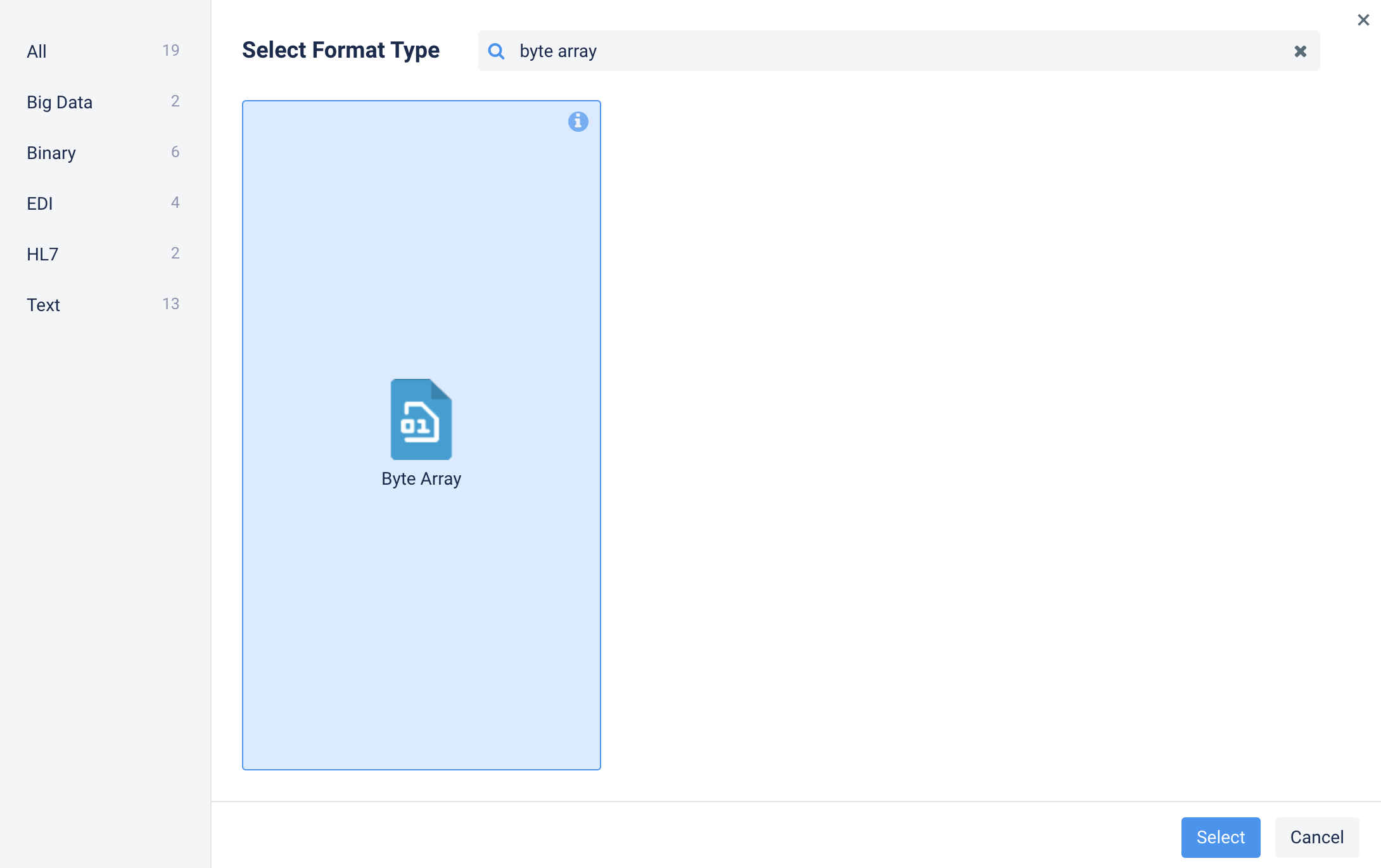

To create a new Byte Array Format, go to Connections, select the Formats tab, click Add Format, and type in byte array in the Search field.  Select Byte Array.

How to use format

The Byte Array format is ideal when transferring unaltered messages between different message queues or brokers. This format ensures messages are passed along without transformation, preserving their original structure.

Use cases:

• Stream unmodified message between different queues
• Send unmodified messages from one MQTT broker to another
